NEW LISTING
(Click on above thumbnails to enlarge photos)
AKAI REEL TO REEL R2R 250D
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 3-SPEED / 3-MOTOR
DIRECT DRIVE
1/4" STEREO TAPE DECK
"WORLD AC POWER" ™
Circa 1970's
SOLD 9/29/05







NEW LISTING 11/10/05
(Click on above thumbnails to enlarge photos)

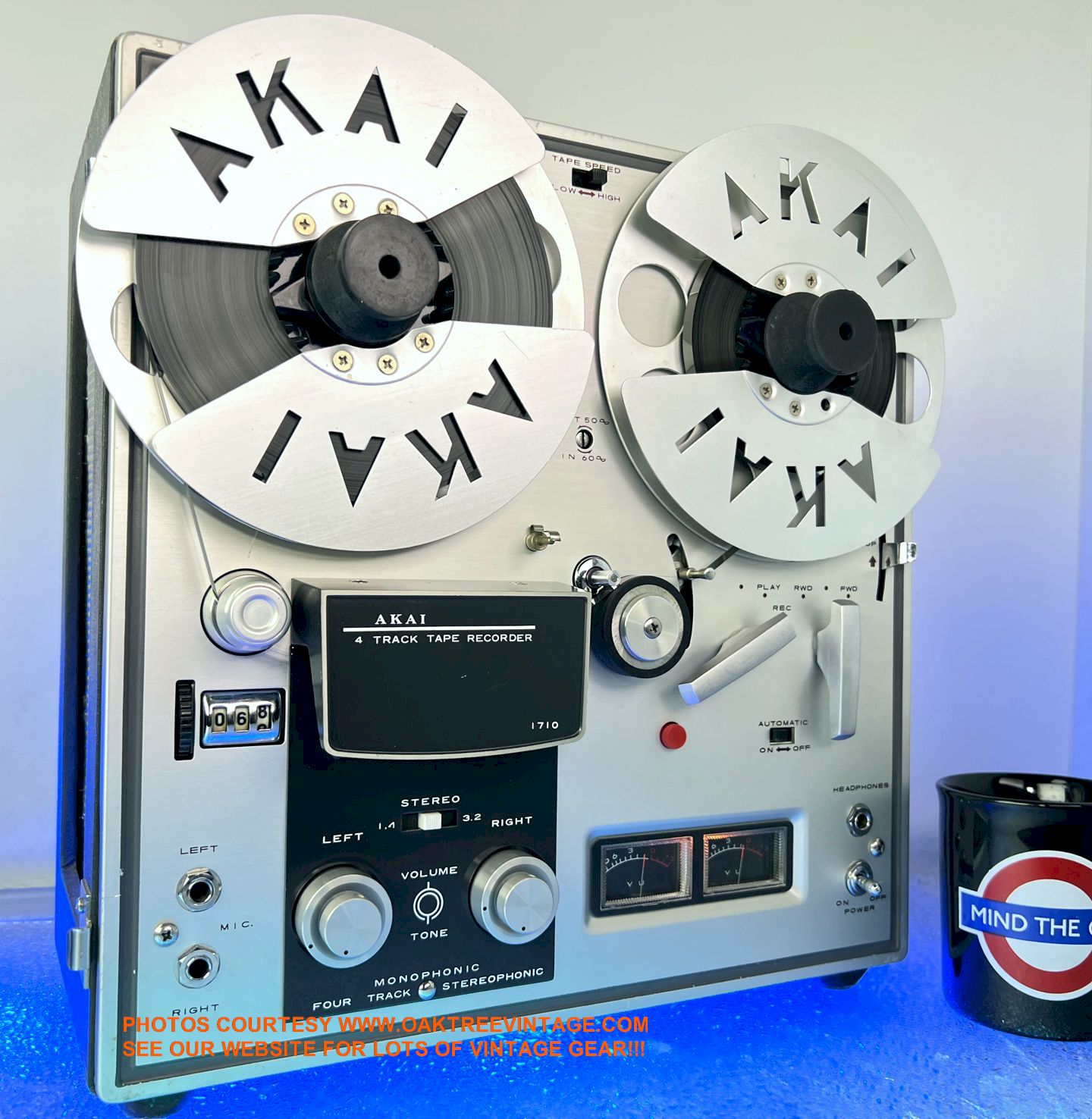

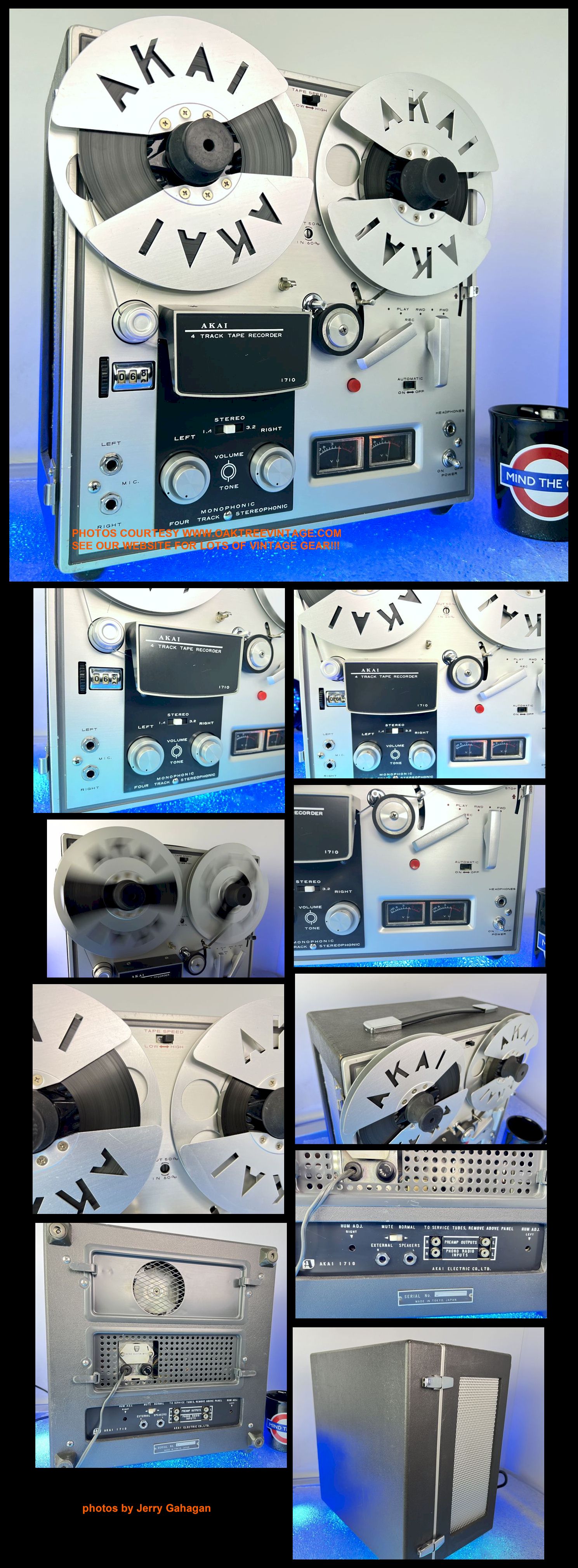

AKAI
MODEL 1710W
 4-TRACK / 2-CHANNEL
5-TUBE
 STEREO
OPEN
REEL TO REEL
 3-SPEED
1/4" TAPE DECK
w/ BUILT-IN AMP & SPEAKERS
"WORLD AC POWER" ™
Circa 1971-78
SOLD 12/2/05





NEW LISTING 3/11/05
(Click on above thumbnails to enlarge photos)
AKAI
MODEL 1722 II
 4-TRACK / 2-CHANNEL
 STEREO
OPEN
REEL TO REEL
2-SPEEDS
1/4" TAPE DECK
w/ BUILT-IN AMP & SPEAKERS
Circa mid 1978-81
SOLD 3/27/05




NEW LISTING 10/13/08
(Click on above thumbnails to enlarge photos)
warranty
AKAI
 MODEL 1722W
#...0355
  4-TRACK / 2-CHANNEL
  STEREO
 OPEN
 REEL TO REEL
 2-SPEEDS
 1/4" TAPE DECK
 w/ BUILT-IN AMP & SPEAKERS
 Circa mid 1977-78
"WORLD AC POWER" ™
MIJ
SOLD 12/8/08







NEW LISTING 9/14/05
(Click on above thumbnails to enlarge photos)
AKAI
MODEL 1730-DSS
4-TRACK STEREO / 4-CHANNEL
QUAD / SURROUND SOUND / 2-CHANNEL STEREO
3-HEAD / 2-SPEED
       REEL TO REEL R2R
1/4" TAPE DECK
Circa 1973-77
SOLD 10/18/05





              NEW LISTING 9/19/07
(Click on above thumbnails to enlarge photos)
warranty
AKAI
             MODEL 1730-SS 1730SS
#...0139
4-TRACK STEREO / 4-CHANNEL
QUAD / SURROUND SOUND /
2-CHANNEL STEREO
3-HEAD / 2-SPEED
       REEL TO REEL R2R
1/4" TAPE DECK
SOLD 2/22/08





NEW LISTING 10/24/06
(Click on above thumbnails to enlarge photos)
warranty
AKAI 4000DB
STEREO REEL TO REEL
SOLD 12/11/06





NEW LISTING 4/19/13
(Click on above thumbnails to enlarge photos)
warranty
VINTAGE AKAI REEL TO REEL
AKAI 4000DB REEL TO REEL TAPE DECK
STEREO 2-CHANNEL OR MONO 4-CHANNEL
2-SPEED, 3-HEADS W/ DOLBY NR
¼” X 5” OR 7” TAPE
#...0294
Circa 1977
MIJ
SOLD 5/6/13
SHIPPING TO CALIFORNIA

ü  Our technician has completely gone through and 'Certified' this unit.

ü  Everything was cleaned inside and out including all switches, controls and contacts.

ü  Tape Monitor switch repaired for proper operation.

ü  Entire internal transport mechanism disassembled, cleaned of old grease, re-lubed, reassembled and adjusted to spec.

ü  Rubber pinch roller has been reconditioned.

ü  New main drive belt and counter belt installed.

ü  Capstan cleaned and burnished.

ü  Flywheel thrust bracket removed, bearing surface cleaned and re-lubed, then reinstalled and adjusted.

ü  All internal pots and controls cleaned and tested for noise-free function. Both playback level and meter level internal pots adjusted using factory service manual and test tones.

ü  Dolby 400Hz reference tone calibrated.

ü  Both spindles in perfect alignment and reel locks work perfectly with no missing fins.

ü  Brake pads reconditioned on both sides and are in good shape.

ü  Head alignment / azimuth has been checked with factory 'STL' test tapes and an O-Scope for peak performance. Head alignment done w/ factory test tones @ 10k & 15kHz. Heads are in great shape as well, with many years of performance left in them.

ü  Heads and entire transport cleaned and electronically de-mag'd.

ü  Play 'cam dogs' have ZERO deterioration and are LIKE NEW. This is a ‘MUST INSPECT’ item on Akai reel to reel, '2-lever transport' decks!!!

ü  Plays and records very well. We tested with a myriad of tapes once restoration was complete. This is a great sounding tape deck.

ü  Speed checked to 98% accuracy!

Cosmetically the deck looks great. Just over 7 hours invested in this deck’s refurb. It’s READY TO GO!

Great cosmetic condition Akai 4000DB. Wood grain, vinyl wrapped wood cabinet and cover. This is one of the few reel to reel decks we get in that make it to our finished page. Great performer for playing back your old reel to reel tapes. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. Looks and sounds great! This is a Solid State, not tube unit. Will play 5"and 7" reels.



AKAI 4000DB  Features Include:

- Two spe...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

... tape ends

Original AKAI 4000DB Specs:

Motor: 4-pole induction 1-speed motor @ 1800 RPM (utilizes speed / capstan sleeve to change speeds)
Reel capacity: Up to 7" reel
Heads (3): One Erase Head, One Micron-

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Record Head
Track system: 4-track 2-channel stereo / monaural system
Tape Speed: 3 ¾, and 7 ½ Inches Per Second +/- x% (again, we tested this deck after our refurbishment at 1k=980, which is 98%!)
Wow & Flutter:  <xxx% RMS (7.5 ips)
<xx% RMS @ 3-3/4 ips
Frequency Response:
3x,000 Hz ± 3db at 7 ½ IPS (w/ extended range tape)
3xxx6,000 Hz ± 3db at 3 ¾ IPS (w/ extended range tape)
Distortion :  < xx% at 1kHz & 0 VU
S/N: >x0 db @ 7.5 ips
Input Levels:
Mic - >0.x5 mv @ 5k Ohms
HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Line - >x0 mv @ 150k Ohms
DIN - > 7mv (LOW)
Output Levels: 0.xxV (0 dB)) utilizing a recorded level of '0' dB @ 250Hz, DIN at 0.5 V
Erase Ratio: >xx dB.
Cross talk: >xxdB stereo / >65 dB mono
Record Bias Freq: xx khz +/- 5%
Bias Leakage: <-xx UV, Dolby off
Fast Wind Times: 280 seconds using 1800 feet tape
Recording / Playback Times: 4 hrs stereo recording @ 7.5 IPS w/ 1200 ft. Tape
Input jacks: (2) Microphone: 0.25 mV, (2) Line 50 mV, DIN >2.5 mV
Required microphone impedance: 600 ohms

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


 Again, this deck was restored for both Recording and Playback. As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Pinch roller and heads all in fine condition!!! Face is made of beautiful brushed Aluminum. Case is also in great shape with only a small veneer chip to the left edge panel. If you need a deck for transferring your reel to reel tapes to another media, making new tapes / recordings or just listening to your tapes, then you won't be disappointed in this one. Measures 17.25" wide x 12.5" tall x 9" deep and weighs 29 lbs unpacked. E-copies in pdf of the owners manual can be emailed to the purchaser. Does come with a standard plastic, take-up reel. Includes our standard 30 day limited warranty. (Reels & tape shown in photos not included, but are sometimes available)
   Cond. 8.5
 AKAI 4000DB REEL-TO-REEL TAPE RECORDER
SOLD 5/6/13
SHIPPING TO CALIFORNIA


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











NEW LISTING 1/16/07
(Click on above thumbnails to enlarge photos)
warranty
AKAI 4000DS REEL TO REEL TAPE DECK
SOLD 1/17/07



NEW LISTING 5/25/11
(Click on above thumbnails to enlarge photos)
warranty
AKAI
OPEN REEL-TO-REEL TAPE RECORDER
MODEL 4000DS
 1/4" 4-TRACK / 2-CHANNEL
 STEREO
3-HEADS / 2-SPEEDS
AUTO-REVERSE
OPEN REEL TO REEL
TAPE DECK
#...2769
Circa 1973-76
SOLD 6/16/11







        NEW LISTING 4/19/13
(Click on above thumbnails to enlarge photos)
warranty
AKAI 4000DS REEL TO REEL TAPE DECK
STEREO 2-CHANNEL OR MONO 4-CHANNEL
2-SPEED, 3-HEADS
¼” X 5” OR 7” TAPE
 #...0542
Circa 1977
"WORLD AC POWER" ™
MIJ
SOLD 7/8/13
SHIPPING TO NEW HAMPSHIRE

ü  Our technician has completely gone through and 'Certified' this unit.

ü  Everything was cleaned inside and out including all switches, controls and contacts.

ü  Tape Monitor switch repaired for proper operation.

ü  Entire internal transport mechanism disassembled, cleaned of old grease, re-lubed, reassembled and adjusted to spec.

ü  Rubber pinch roller has been reconditioned.

ü  New main drive belt and counter belt installed.

ü  Capstan cleaned and burnished.

ü  Flywheel thrust bracket removed, bearing surface cleaned and re-lubed, then reinstalled and adjusted.

ü  All internal pots and controls cleaned and tested for noise-free function. Both playback level and meter level internal pots adjusted using factory service manual and test tones.

ü  Dolby 400Hz reference tone calibrated.

ü  Both spindles in perfect alignment and reel locks work perfectly with no missing fins.

ü  Brake pads reconditioned on both sides and are in good shape.

ü  Head alignment / azimuth has been checked with factory 'STL' test tapes and an O-Scope for peak performance. Head alignment done w/ factory test tones @ 10k & 15kHz. Heads are in great shape as well, with many years of performance left in them.

ü  Heads and entire transport cleaned and electronically de-mag'd.

ü  Play 'cam dogs' have ZERO deterioration and are LIKE NEW. This is a ‘MUST INSPECT’ item on Akai reel to reel, '2-lever transport' decks!!!

ü  Plays and records very well. We tested with a myriad of tapes once restoration was complete. This is a great sounding tape deck.

ü  Speed checked to 99% accuracy!

Cosmetically the deck looks great. Just over 8 hours invested in this deck’s refurb. It’s READY TO GO!



Wood cabinet and cover. This is one of the few reel to reel decks we get in that make it to our finished page. Great performer for playing back your old reel to reel tapes. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25 % of the used Reel decks out there can be "practically" restored to working order. Looks and sounds great! This is a Solid State, not tube unit. Will play 5"and 7" reels.

AKAI 4000DS  Features Include:

- Two

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- Front mounted ¼” Stereo Headphone Jack
- Standard RCA I/O’s
- Selectable Hi-...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 ...play and fast wind functions
- Auto Shut-Off of power selector when tape ends

Original AKAI 4000DS Specs:

Motor: 4-pole induction 1-speed motor @ 1800 RPM (utilizes speed / capstan sleeve to change speeds)
Reel capacity: Up to 7" reel
Heads (3): One Erase Head, One Micron-Gap Playback / One Micron-Gap Record Head
Track system: 4-track 2-channel stereo / monaural system
Tape Speed: 3 ¾, and 7 ½ Inches Per Second +/- xx% (again, we tested this deck after our refurbishment at 1k=1001, which is x%!)
Wow & Flutter:  <0.xx% RMS (7.5 ips)
<0.xx% RMS @ 3-3/4 ips
Frequency Response:
3x000 Hz ± 3db at 7 ½ IPS (w/ extended range tape)
3xx6,000 Hz ± 3db at 3 ¾ IPS (w/ extended range tape)
Distortion :  < xx% at 1kHz & 0 VU
S/N: >xx db @ 7.5 ips
Input Levels:
Mic - >0x5 mv @ 5k Ohms
Line - >x mv @ 150k Ohms
DIN - > 7mv (LOW)
Output Levels: 1xV / 4dB (+/- 1dB) utilizing a recorded level of '0' dB @ 250Hz
Erase Ratio: >xx dB.
Cross talk: >xxdB stereo
Record Bias Freq: xxx khz +/- 5%
Fast Wind Times: 200 seconds using 1200 feet tape
Recording / Playback Times: 4 hrs stereo recording @ 7.5 IPS w/ 1200 ft. Tape
Input jacks: (2) Microphone: 0x mV, (2) Line x0 mV
Required microphone impedance: 600 ohms

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Again, this deck was restored for both Recording and Playback. As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Pinch roller and heads all in fine condition!!! Face is made of beautiful brushed Aluminum. Overall cosmetics has VERY LITTLE wear and unit looks GREAT! If you need a deck for transferring your reel to reel tapes to another media, making new tapes / recordings or just listening to your tapes, then you won't be disappointed in this one. Measures 17.25" wide x 12.5" tall x 9" deep and weighs 29 lbs unpacked. Copies of the owners manual and service manual can be emailed to the purchaser. Does come with a standard plastic, take-up reel. Includes our standard 30 day limited warranty. (Reels & tape shown in photos not included, but are sometimes available)

AKAI 4000DS REEL-TO-REEL TAPE RECORDER
Cond. 8.5+
SOLD 7/8/13
SHIPPING TO NEW HAMPSHIRE

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











NEW LISTING
(Click on above thumbnails to enlarge photos)
AKAI
MODEL 4000DS MK II
4-TRACK STEREO / 2-CHANNEL
3-HEAD
OPEN
REEL TO REEL
1/4" TAPE DECK
WITH
"SOUND-ON-SOUND"
Circa 1976-78
SOLD 3/23/05



        NEW LISTING 9/1/11
(Click on above thumbnails to enlarge photos)
warranty
AKAI
OPEN REEL TO REEL TAPE RECORDER
MODEL 4000DS-MKII
 1/4" 4-TRACK / 2-CHANNEL
 STEREO
3-HEAD / 2-SPEEDS
AUTO-REVERSE
OPEN REEL TO REEL
TAPE DECK
#...3792
Circa 1977
SOLD 1/6/12
We have completely gone through this unit restoring it for 'Play Back' only use. Entire internal transport mechanism disassembled, cleaned of old grease, re-lubed and reassembled. Rubber pinch roller has been reconditioned. New main drive belt and counter belt installed. Capstan cleaned and burnished. All heads have been cleaned and de-magnetized as well as the entire transport. Flywheel thrust bracket removed, bearing surface cleaned and re-lubed, then reinstalled and adjusted. All internal pots and controls cleaned and tested for noise-free function. Both playback level and meter level internal pots adjusted using factory service manual and test tones. Both spindles in perfect alignment and reel locks work perfectly with no missing fins. Brake pads reconditioned on both sides and are in good shape. Heads cleaned and are in great shape as well, with many years of performance left in them and head alignment / azimuth has been checked with factory 'STL' test tapes and an O-Scope for peak performance. Head alignment done w/ factory test tones @ 10k & 15kHz. Heads and entire transport electronically de-mag'd.
Play 'cam dogs' have ZERO deterioration and are LIKE NEW. This is a 'must inspect' item on Akai, '2-lever transport' decks!!!
Plays very well. We tested with a myriad of tapes once restoration was complete. This is a great sounding Play Back tape deck. Speed checked to 99% accuracy! Cosmetically the deck looks great. Just over 14 hours invested in this decks refurb. Again, for 'Playback' use, it's READY TO GO!



Great cosmetic condition & Ready-to-go for tape Playback, Akai 4000DS-MKII.
SOLD 1/6/12

  (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)


NEW LISTING 10/6/16
(Click on above thumbnails to enlarge photos)
warranty
AKAI
OPEN REEL TO REEL TAPE RECORDER
MODEL 4000DS-MKII
 1/4" 4-TRACK / 2-CHANNEL
 STEREO
3-HEAD / 2-SPEEDS
AUTO-REVERSE
OPEN REEL TO REEL
TAPE DECK
#...3792
Circa 1977
SOLD 10/9/16
SHIPPED TO CALIFORNIA

ü  Our technician has completely gone through and 'Certified' this unit.

ü  We have completely and extensively gone through the mechanicals and electronics of this unit.

ü  Transport 'cam dogs' on this series are the 'later' versions and resistant to deterioration (MUCH unlike most other Akai decks)

ü  Entire transport was disassembled down to the chassis, and every mechanical part was removed / disassembled, cleaned, re-lubed and reassembled.

ü pinch-roller mechanism completely disassembled, cleaned and re-lubed

ü Capstans / flywheels removed, bushings and axels cleaned and re-lubed

ü Capstans burnished

ü Internal drive wheels / tires removed, and resurfaced

ü  Main motor removed, inspected and cleaned

ü  Knurled drive pulley cleaned of old rubber residue

ü  Brand new 'Main' drive belt installed

ü Flywheel thrust bracket removed, bearing surface cleaned and re-lubed, then reinstalled and adjusted.

ü Pinch roller removed, resurfaced / reconditioned, and lubed prior to re-install

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Brake pads cleaned / reconditioned

ü Brakes adjusted on fast wind modes also.

ü Back tension adjusted on both reel tables.

ü All transport functions now test perfectly, following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" tapes

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü Deck has been fully calibrated to factory manual specs, tested, and found to perform like new in all categories (see resulting record level listed below)

ü Both spindles in perfect alignment, with no wobble or missing fins

ü We also adjusted the reel table heights.

ü Meter lamp replaced with new

ü Heads cleaned and de-magnetized (as well as entire transport) and are in great shape as well, with many years of performance left in them.

ü Mic / Line control pots cleaned for static free performance

ü BOTH Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test 'STL' tone tape and oscilloscope.

ü We adjusted the VU meters following head alignment and internal circuit board PC pot adjustments

ü Following PB & REC amp circuit board adjustments, deck Records at +/-0dB !!! on Normal Bias tape

ü Speed tested to 99.3% accurate w/ 1kHz factory test tape and frequency counter.

ü Floor noise measured at >-60dB following above procedures

ü This Akai GX-4000D MK-II functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 10.5 hours).
____________________________
Looks GREAT & is "Ready-to-go"! Will play / record stereo 1/4" tapes on reels 3, 5 & 7". This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 30-50% of the used Reel decks out there can be "practically" restored to working order. This one made it through and all functions test great! Looks and sounds great too! Again, we have completely gone through it.

Akai GX-4000D MK-II Features include:

- 4-Track / 2-Channel
- One-Micron Gap Head
- 3*, 5*", & 7" Reel Capacity (*compatible with standard 4-Track / 2-Channel tape format)
- 3 Heads for instant monitoring of tape levels while recording (enables us to get the 'record head' alignment VERY exact with oscilliscope)
- Dual speeds at 7.5 ips / 19cms and 3 3/4ips / 9.5 cms
- Separate & dual ...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

- Track Selector for Stereo / 2-Channel, or Mono / 4 Channels
- Independent L & .."
- Tape...
- Auto-..
- Mechanical '..
- Left & ...
- Dual...

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


- Spring....
- 4-Digit Analog tape counter
- Dual front mounted...
- Front mounted...

Akai GX-4000D MK-II Specifications:

Motor: 4-pole induction 1-speed motor @ 1800 RPM (utilizes speed / capstan sleeve to change speeds)
Reel capacity: Up to 7" reel

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Heads (3): One Erase Head, One Micron-Gap Playback / One Micron-Gap Record Head
Track system: 4-track 2-channel stereo / monaural system
Tape Speed: 3 ¾, and 7 ½ Inches Per Second +/- 2% (again, we tested this deck after our refurbishment at 1k=993, which is 0.07%!)
Wow & Flutter:  <0.xx% RMS (7.5 ips)
<x% RMS @ 3-3/4 ips
Frequency Response:
xxx Hz ± 3db at 7 ½ ips (w/ extended range tape)
xxx Hz ± 3db at 3 ¾ ips (w/ extended range tape)
Distortion :  < xx% at 1kHz & 0 VU
S/N: >xxdb @ 7.5 ips (6dB better than the MK-I !!!)
Input Levels:
Mic - >xx mV @ 30k Ohms

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Line - >xx mV @ 200k Ohms
Output Levels: xxV utilizing a recorded level of '0' dB @ 250Hz
Record Bias Freq: xxxkHz +/- 5x%

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


Fast Wind Times: xseconds using 1200 feet tape
Recording / Playback Times: 4 hrs stereo recording @ 7.5 IPS w/ 1200 ft. Tape

As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records perfectly following our full service, AGAIN, records at 0dB down, yes, that's a ZERO!
Deck looks near new, works and sounds great!
These are great machines from Akai, and this is one of the 50% that have the 'later / improved' cam dogs that resist disintegration.
Includes a pdf / 'e-copy' download of the Akai GX-4000DS MK-II Owners manual and Brochure, and if desired, a copy of the Akai GX-4000DS MK-II Service manual. Measures 16" wide x 7.75" deep x 13.5" high and weighs 25 lbs unpacked. Includes our standard 30 day limited warranty.
(Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels)
Akai GX-4000DS MKII Reel to Reel Tape Deck
Cond. 8.5++
SOLD 10/9/16
SHIPPED TO CALIFORNIA

  (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)



(Click on above photos to enlarge)
AKAI
ATR-10
10" METAL REELS
For 1/4" tape and use with hubs.
NOS still in box!
Cond. 10
Very limited quantity!!!
SOLD OUT





NEW ADDITION
Click on above thumbnails to enlarge photos)
warranty
AKAI
CR-81D
8-TRACK STEREO
RECORD TAPE DECK
SOLD 3/3/06




AKAI
CASSETTE DECK
GX-F95
SOLD







NEW LISTING 7/9/07
(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL X-200D
 4-TRACK / 2-CHANNEL
 STEREO
3-MOTOR
3-SPEEDS
AUTO-REVERSE
OPEN
REEL TO REEL
1/4" TAPE DECK
SOLD 7/16/07







NEW LISTING 3/5/11 6:30PM
(Click on above thumbnails to enlarge photos)
warranty
AKAI
OPEN REEL-TO-REEL TAPE RECORDER
MODEL X-200D
 4-TRACK / 2-CHANNEL
 STEREO
3-MOTOR / 3-SPEEDS
AUTO-REVERSE
OPEN REEL
1/4" TAPE DECK
"WORLD AC POWER" ™
Circa mid 1970's
SOLD 3/5/11 7:45PM








NEW LISTING 4/1/05
(Click on above thumbnails to enlarge photos)
AKAI
MODEL GX-215D
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
REEL TO REEL R2R
AUTO-REVERSE
1/4" TAPE DECK
"WORLD AC POWER" ™
Circa 1971-72
SOLD 5/11/05







NEW LISTING 3/14/05
(Click on above thumbnails to enlarge photos)
AKAI REEL TO REEL GX-220D
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 3-SPEED / 3-MOTOR
AUTO-REVERSE
1/4" TAPE DECK
"WORLD AC POWER" ™
Circa 1971-72
SOLD 3/21/05

NEW LISTING 6/10/05
(Click on above thumbnails to enlarge photos)
AKAI
MODEL GX-230D
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
DIRECT DRIVE
REEL TO REEL R2R
AUTO-REVERSE
1/4" TAPE DECK
Circa 1970's
SOLD 6/14/05




NEW LISTING 1/5/06
(Click on above thumbnails to enlarge photos)
AKAI
MODEL GX-230D
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
DIRECT DRIVE
REEL TO REEL R2R
AUTO-REVERSE
1/4" TAPE DECK
Circa 1970's
SOLD 1/5/06




                   NEW LISTING 9/19/07
(Click on above thumbnails to enlarge photos)
warranty
AKAI
      MODEL GX-260D GX260D
PLAYBACK ONLY DECK!
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 3-MOTOR / 2-SPEED
AUTO-REVERSE*
REEL TO REEL R2R
1/4" TAPE DECK
SOLD 1/3/08







NEW LISTING 10/26/12
 (Click on above thumbnails to enlarge photos)
warranty
AKAI 1/4" REEL-TO-REEL STEREO TAPE DECK GX-260D / GX260D
#...1134 (black VU meters)
 4-TRACK / 2-CHANNEL
   2-SPEED / 6-HEAD
AUTO-REVERSE
  5"* - 7" REEL CAPACITY
   "WORLD AC POWER" ™
   Circa 1973-76
SOLD 11/28/12
SHIPPING TO CALIFORNIA
We've been 'sitting' on this deck along with a few other 'difficult / performance critical' decks for a few years now, waiting until we had a technician with sufficient skills to 'do them justice' and realize their top potential performance. Sure we have been able to do more 'bread-n-butter' decks for years, such as Akai 150 / 210 / 1700 / 1800 / 4000 series, Sony TC-100, 300 & 300 series, Teac A-4010 / 6010 series, Pioneer RT-707's and 909's (yes, great looking and darn good performing decks, but I hate to 'burst your bubble', but while they have proven to be a 'durable' design 30 years after they were discontinued, they're no where near the best performing decks as R2R's go, sorry) and others, but chose not to 'tackle' these. Well, now by a stroke of luck, we have 'him'. Our 'new to us' technician is able to really 'do justice' to decks such as this. Yes, he's expensive and it's time consuming, but AS ALWAYS, we are striving for TOP quality and not for 'cheap'. If you want 'cheap' there are plenty of 'as found' decks out there to 'roll the dice' on. Our new technician spent much of the 1970's managing the service department of the famous Pacific Stereo chain, then on to their 'Recycle Audio' division. Heck, the guy even 'co-invented' the optical mouse (you're probably using one right now). He's our guy to restore decks such as this!
Our technician has completely gone through and 'Certified' this unit. We have completely and extensively gone through the mechanicals and electronics of this unit. Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled. Flywheel was removed, cleaned and reinstalled with silicone lube on flywheel thrust plate bearing. The capstan was burnished, heads have been cleaned and de-magnetized as well as the entire transport. Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed as well as the always at issue, 'Pinch Roller swing arm' assembly. 'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid. Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also. Rewind 'back tension' adjusted. Motor 'start / run' capacitors checked. Voltage selector set for correct North American AC current at 117-120VAC. All internal pots / controls cleaned in both the playback amplifier, record amplifiers and the built-in 'audio' amp and tested for noise-free function. New VU meter and direction indicator illumination lamps / bulbs installed. Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment. Main Drive and counter belts replaced for trouble-free service. Rubber pinch roller was removed, cleaned & reconditioned. We also adjusted the reel table heights. Tape heads and entire transports demagnetized.
Heads in Like New shape as well, with many hundreds of hours of performance left in them and head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 30Hz, 50Hz, 100Hz, 200Hz, 500Hz, 1k, 2.5k, 5k, 7.5k, 10k, 12k & 15k as well as 700Hz 'reference' tones thru an oscilloscope and with a dBm meter and were charted (we have the full L&R, Forward and Reverse, Normal and 'High Bias' results charted and available to the purchaser, but too much typing to display here as it's over 100 documented results). Suffice to say, this unit Plays and Records INCREDIBLY WELL starting with the following results using 'High-Bias' tape, from 200Hz with -1dB & from 0dB to +1dB 1k to 15kHz!!! We further tested it at -1.5dB @ 20kHz and -5dB at 35kHz. YES, you read that right! All the way to 35kHz. AND the above results were referenced at '0' dB on the meters, not the typical and EASY -20dB!
Both PB output levels and VU meters playback internally adjusted for even response. Floor noise measured at 0.4mVAC at idle and 1.7mVAC with blank tape in play mode. (Akai GX-260D's do have a DC surge / thump at turn-on, by design, so keep the volume on your amp / receiver down or off, or speakers 'Off' during power-up sequence.)
We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition. Speed tested / checked to 98.4% accuracy utilizing 'Institute of High Fidelity' test tape. Following electro/mechanical restoration, unit received a cosmetic cleaning / detailing. There are a couple of chips to the side panel Formica, but nothing too distracting (see above photos). Overall looks fine.
Entire unit looks, works and sounds GREAT!
  (Total time investment in refurb / testing ~ 16+ hours). Pinch roller and heads all in GREAT condition!!!
  ____________________________

GREAT performing Akai GX-260D 1/4" Open Reel stereo tape deck! Great for all-around Playback and especially recording of reels up to 7" in diameter. This deck has some very 'sonic specific' features, and while it would make a great deck for burning your tapes to CD or Hard Drive or for a 'media transfer business', we hope it will go to someone who will utilize and appreciate it's incredible recording capabilities. Some of the aspects that make it 'stand above the crowd' for recording, “The core of GX heads is comprised of a single crystallized element “single crystal ferrite” which has proved far superior to ‘poly-ferrite’ in that there are no minute ‘composite particles’ to eventually separate and cause head gap damage (wear). This is why Akai heads are famously said to ‘NOT WEAR OUT’.

Center Capstan Drive – Most Auto Reverse decks, (and frankly, most ‘single direction decks’) place the PR/Capstan drive assembly asymmetrically. This creates ‘un-even’ drag and friction on the tape as it travels it’s path. One the GX-260D, the PR / Cap is situated symmetrically in the center of identical head clusters, with an even amount of flanking contact points. This greatly reduces tape friction, which not only ensure identical performance in both directions, but contributes greatly to the models incredibly low ‘Wow & Flutter’ (check the specs @ 0.06%!).
Also, as the heads are stationary, normal ‘head misalignment’ issues common with many ‘auto-reverse’ decks are not an issue on the GX-260D.
As a further testament to the quality of Akai’s motors, Akai was originally a manufacturer of motors in Japan before entering the 'tape deck' business. They had the ‘motor thing’ down!"

Akai GX-260D Reel to Reel Tape Recorder Features include:

- Glass-Xtal Ferrite Heads (virtually will never wear out)
- Symmetrically designed Pinch Roller / Capstan tape path
- Dual speeds at 7.5 ips / 19cms & 3 3/4ips / 9.5 cms
- 6-Head function (4 heads function as 6) for instant monitoring of tape levels / record quality while recording and allow 'movement free' auto-reverse
- Triple-Mode Auto-Reverse
- Bi-Directional Recording
- Solenoid assist, 'Touch Tape Transport' controls
- 'Echo' effect function (can be used as a 'tape delay' for guitar or vocals)
- 5*" / 7" Reel Capacity (*compatible with standard 4-Track / 2-Channel tape format)
- Separate L & R input level and microphone controls
- 'Mic / Line' mixing capabilities allow microphone / musical instruments to be mixed in with 'Line' signals to record yourself 'performing / playing along with the incoming signals'
- Variable output level control (rear located)
- Auto-Stop
- Dual analog VU meters for monitoring Playback and Record levels
- ENDLESS S.O.S. (Sound-On-Sound) capable w/ independent L & R record engage switches
- S.W.S (Sound-with-Sound) capable w/ independent L & R record engage switches
 - Dual front mounted 1/4" mic input jacks
- 1/4" Stereo Headphone jack with dual output level selector
- Mechanical Tape counter
- Built-in Reel / Hub locks (no need for rubber reel retainers)
- RCA and DIN inputs and outputs
-True WORLD AC POWER ™ allows unit to be operated on 50 or 60 Hz AC and will select voltages from 110v, 120v, 220v and 240 volts AC input.

Original Akai GX-260D Specifications:

Track system: 4-track 2-channel stereo/monaural system
Reel Capacity: Up to 7”
Heads (4 (6)): Two GX

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

(Akai P4-202)

Tape Speed: 3 ¾, and 7 ½ Inches Per Second (+/- 1% @ 3.75ips (again, we tested this deck after our refurbishment at 1k=.998, which is 0.2% - 5 times more accurate than original spec!)

Motor (3): On

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

 reel motors
Wow & Flutter: <0.xx% RMS @ 7.5 ips (2.5 times better than the GX-4000D!)
<0.xx% RMS @ 3-3/4 ips (2 times better than the GX-4000D!)
Frequency Response:
30x00 Hz ± 3db at 7 ½ IPS (w/ extended range tape)
xx000 Hz ± 3db at 3 ¾ IPS (w/ extended range tape)

x3,000 Hz ± 3db at 7 ½ IPS (w/ normal tape)
x-18x,000 Hz ± 3db at 3 ¾ IPS (w/ normal tape)
Distortion : < xx% at 1kHz & 0 VU
S/N: >xx db @ 7.5 ips (7 dB better than the GX-4000D)
Input Levels:
Mic - >xx mv @ 4.7k Ohms
Line - >xx mv @ 150k Ohms
DIN – 0.xV(high) / 2x30mV (low)
Output Levels: xxV / (+4dB) @/ 100 Ohms utilizing a recorded level of '0' dB on th e VU meters
Erase Ratio: >xx dB.
Cross talk: >xxdB mono & >xxdB stereo
Record Bias Freq: 1x0khz +/- 5%
Fast Wind Times: 66-75 seconds using 1200 feet tape (2.7+ times faster than the GX-4000 series)

Following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically.Again this deck has had EXTENSIVE restoration by our 'magician' technician and is now a great performer sonically and mechanically. It's pretty much had the clock rolled back 40 years on it. Looks great & Ready to go! Best for playback but we hope will see plenty of 'Recording' action due to the superior level of quality it 'finalized at' following restoration. Again, while GREAT for

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

ordings. We had a blast revisiting some of our old tapes during final testing with this unit. Can include a pdf 'e' copy of the Akai GX-260D brochure, and owners manual. Includes our standard 30 day limited warranty. Measures 18.6" wide x 9" deep x 17.5" tall and weighs 46 lbs unpacked.
(Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)
AKAI GX-260D REEL TO REEL TAPE DECK
Cond. 8.2
SOLD 11/28/12
SHIPPING TO CALIFORNIA

  (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







         NEW LISTING 10/26/12
 (Click on above thumbnails to enlarge photos)
warranty
AKAI 1/4" REEL-TO-REEL STEREO TAPE DECK GX-260D / GX260D
#...2689 (blue VU meters)
 4-TRACK / 2-CHANNEL
   2-SPEED / 6-HEAD
AUTO-REVERSE
  5"* - 7" REEL CAPACITY
   "WORLD AC POWER" ™
   Circa 1973-76
SOLD 1/7/13
SHIPPED TO TENNESSEE
We've been 'sitting' on this deck along with a few other 'difficult / performance critical' decks for a few years now, waiting until we had a technician with sufficient skills to 'do them justice' and realize their top potential performance. Sure we have been able to do more 'bread-n-butter' decks for years, such as Akai 150 / 210 / 1700 / 1800 / 4000 series, Sony TC-100, 300 & 300 series, Teac A-4010 / 6010 series, Pioneer RT-707's and 909's and others, but chose not to 'tackle' these. Well, now by a stroke of luck, we have 'him'. Our 'new to us' technician is able to really 'do justice' to decks such as this. Yes, he's expensive and it's time consuming, but AS ALWAYS, we are striving for TOP quality and not for 'cheap'. If you want 'cheap' there are plenty of 'as found' decks (read, 'boat anchors') out there to 'roll the dice' on. Our new technician spent much of the 1970's managing the service department of the famous Pacific Stereo chain, then on to their 'Recycle Audio' division. Heck, the guy even 'co-invented' the optical mouse (you're probably using one right now). He's our guy to restore decks such as this!
Our technician has completely gone through and 'Certified' this unit. We have completely and extensively gone through the mechanicals and electronics of this unit. Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled. Flywheel was removed, cleaned and reinstalled with silicone lube on flywheel thrust plate bearing. The capstan was burnished, heads have been cleaned and de-magnetized as well as the entire transport. Again, the entire transport assembly was painstakingly disassembled, cleaned and re-lubed as well as the always at issue, 'Pinch Roller swing arm' assembly. 'Auto-Stop' mechanism disassembled and re-lubed with fresh 300,000 silicon damping fluid. Also hub brakes have been cleaned, re-lubed, and adjusted on fast wind modes also. Rewind 'back tension' adjusted. Motor 'start / run' capacitors checked. Voltage selector set for correct North American AC current at 117-120VAC. All internal pots / controls cleaned in both the playback amplifier, record amplifiers and the built-in 'audio' amp and tested for noise-free function. New VU meter and direction indicator illumination lamps / bulbs installed. Both spindles were completely disassembled, cleaned and had their bearings / bushings cleaned and re-lubed and are in perfect alignment. Main Drive and counter belts replaced for trouble-free service. Rubber pinch roller was removed, cleaned & reconditioned. We also adjusted the reel table heights.  Tape heads and entire transports demagnetized.
Heads in Like New shape as well, with many hundreds of hours of performance left in them and head alignment / azimuth has been checked for peak performance on both play and record heads with factory STL 30Hz, 50Hz, 100Hz, 250Hz, 500Hz, 1k, 2.5k, 5k, 7.5k, 10k, 12k & 15k as well as 700Hz 'reference' tones thru an oscilloscope and with a dBm meter and were charted (we have the full L&R, Forward and Reverse, Normal and 'High Bias' results charted and available to the purchaser, but too much typing to display here as it's over 100 documented results). Suffice to say, this unit Plays and Records INCREDIBLY WELL starting at 30Hz with 0dB & -1dB from 1k to 15kHz!!! Both PB output levels and VU meters playback internally adjusted for even response. Floor noise measured at 0.1mVAC at idle and 1.5mVAC with blank tape in play mode. (Akai GX-260D's do have a DC surge / thump at turn-on, by design, so keep the volume on your amp / receiver down or off, or speakers 'Off' during power-up sequence.)
We really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Pinch roller and heads all in GREAT condition. Speed tested / checked to 98.5% accuracy utilizing 'Institute of High Fidelity' test tape. Following electro/mechanical restoration, unit received a cosmetic cleaning / detailing. No cosmetic issue to speak of. Looks near new. Side panels have 'crisp' corners and edges. No scuffs, scratches or anything work mentioning.....
  (Total time investment in refurb / testing ~ 14+ hours). Pinch roller and heads all in GREAT condition!!!
  ____________________________

.

Original Akai GX-260D Specifications:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Track system: .....
Reel Capacity: Up to .....
Heads (4 (6)): .....

Tape Speed: .....

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?



Motor (3): .....
Wow & Flutter: <0XXX% RMS @ 7.5 ips (2.5 times better than the GX-4000D!)
<XX% RMS @ 3-3/4 ips (2 times better than the GX-4000D!)
Frequency Response:
XXXHz ± 3db at 7 ½ IPS (w/ extended range tape)
XXXHz ± 3db at 3 ¾ IPS (w/ extended range tape)

XXX Hz ± 3db at 7 ½ IPS (w/ normal tape)
XXX Hz ± 3db at 3 ¾ IPS (w/ normal tape)
Distortion : < XX% at 1kHz & 0 VU
S/N: >XX db @ 7.5 ips (X dB better than the GX-4000D)
Input Levels:
Mic - >XXX mv @ XXk Ohms
Line - >XXX mv @ XXk Ohms

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


DIN – XXXX(high) / XXmV (low)
Output Levels: XXV / (+XdB) @/ 100 Ohms utilizing a recorded level of '0' dB on th e VU meters
Erase Ratio: >XX dB.
Cross talk: >XXdB mono & >XXdB stereo
Record Bias Freq: XXkhz +/- X%
Fast Wind Times: 6XXX seconds using XX feet tape (XX+ times faster than the GX-4000 series)

Following the above stated bench work / testing, our technician has 'Certified' this deck and it is an great performer sonically and mechanically. Again this deck has had EXTENSIVE restoration by our 'magician' technician and is now a great performer sonically and mechanically. It's pretty much had the clock rolled back 40 years on it.....
.... Can include a pdf 'e' copy of the Akai GX-260D brochure, and owners manual. Includes our standard 30 day limited warranty.
(Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)
AKAI GX-260D REEL TO REEL TAPE DECK
Cond. 8.5
SOLD 1/7/13
SHIPPED TO TENNESSEE


(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









NEW LISTING 9/14/05
(Click on above thumbnails to enlarge photos)
AKAI
MODEL GX-265D
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
REEL TO REEL R2R
AUTO-REVERSE
1/4" TAPE DECK
Circa 1975-78
SOLD 9/19/05







(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL GX-280
 4-TRACK / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
DIRECT DRIVE
AUTO-REVERSE
3" - 7" REEL CAPACITY
REEL TO REEL R2R
SOLD 5/4/06





NEW LISTING 8/9/06
(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL GX-280D STEREO TAPE DECK
"WORLD AC POWER" ™
SOLD 8/10/06





NEW LISTING 4/1/05
(Click on above thumbnails to enlarge photos)
AKAI
MODEL GX-280D
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED / 3-MOTOR
REEL TO REEL R2R
AUTO-REVERSE
1/4" TAPE DECK
"WORLD AC POWER" ™
Circa 1972-73
SOLD 5/21/05





NEW LISTING 4/29/08
(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL GX-280DSS / GX280DSS
#...0510
SOLD 5/23/08





NEW LISTING 12/02/05
(Click on above thumbnails to enlarge photos)
AKAI
MODEL GX-365D
 4-TRACK / 2-CHANNEL
3-HEAD / 3-SPEED / 3-MOTOR
AUTO-REVERSE
REEL TO REEL R2R
1/4" STEREO TAPE DECK
Circa 1971-73
"WORLD AC POWER" ™
SOLD 1/17/06




       NEW LISTING 9/13/08
(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL GX-365D
#...0244
 4-TRACK / 2-CHANNEL
3-HEAD / 4-SPEED* / 3-MOTOR
AUTO-REVERSE
REEL TO REEL R2R
1/4" STEREO TAPE DECK
Circa 1971-73
"WORLD AC POWER" ™
MIJ
SOLD 10/27/08


* 15ips speed requires optional speed sleeve and pinch roller. These are sometimes available at $95 per set depending on stock level.



NEW LISTING 9/13/08
(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL GX-365D
#...0443
 4-TRACK / 2-CHANNEL
3-HEAD / 4-SPEED* / 3-MOTOR
AUTO-REVERSE
REEL TO REEL R2R
1/4" STEREO TAPE DECK
FOR PLAYBACK USE ONLY**
Circa 1971-73
"WORLD AC POWER" ™
SOLD 10/7/08


* 15ips speed requires optional speed sleeve and pinch roller. These are sometimes available at $95 per set depending on stock level.







AKAI
MODEL GX-620
SOLD






AKAI
MODEL GX-630D
REEL TO REEL
TAPE DECK
SOLD







NEW LISTING 12/20/2020
(Click on above thumbnails to enlarge photos)
warranty
RESTORED / REFURBISHED / FULLY SERVICED / WARRANTED
AKAI OPEN REEL TO REEL TAPE RECORDER
 10.5" / 1/4" STEREO TAPE DECK
AKAI GX-630D / GX630D REEL TAPE DECK
#...0189
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD ("GX" HEADS)
 5" / 7" / 10.5" (THE BIG ONES) REEL CAPACITY
  Circa 1975-79
"WORLD AC POWER" ™
MIJ
SOLD 1/27/2021
SHIPPED TO GEORGE IN FLORIDA

ü  Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü Pinch-roller ‘Lift Mechanism’ completely disassembled, cleaned and re-lubed.

ü Capstans burnished

ü Impedance roller removed, bushings and axels cleaned and re-lubed

ü Rubber pinch rollers have been properly resurfaced and then re-conditioned

ü Brand new counter belts installed #040 & #042

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Power supply CB adjusted to correct 24VDC which enables best performance from Cap motor, Playback and Record amp circuits (slightly low Voltage was originally causing a slight 'low record' situation on the left channel. Also repaired shorted diode on 'Servo' cb.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü Brakes adjusted on fast wind modes on both 7.5” and fully loaded 10.5” reels from top speed.

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü We adjusted the VU meters electronically w/ factory test tone tapes, as well as the internal playback and record levels.

ü Deck has been fully calibrated to factory manual specs, tested, and found to perform great.

ü Both spindles in great alignment.

ü Slight 'flutter' issue was improved by 'truing' capstan more accurately

ü We also adjusted the reel table heights.

ü Heads have virtually no appreciable, visible wear.

ü  Recording tests performed with Maxell UDXL-II tape. Here’s how it tested at 0dB; 1kHz / L= ~-1.5dB & R= ~-1.75dB

ü  Floor noise measured at >-60dBm

ü This Akai GX-630D functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 16.5+ hours).

ü Face is made of beautiful brushed aluminum and is in great condition. Deck looks and works great!
____________________________
Looks GREAT & is "Ready-to-go"! The very sought after Akai GX-630D Stereo Reel to Reel tape deck. Will play / record stereo 1/4" tapes on reels 5, 7 & 10.5". This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. This one made it through and all functions test great! If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. Heads have no appreciable, visible wear, check the record test results above, evidence they’re sounding great! Recordings sound FANTASTIC on this unit now. Looks essentially NEW (just a couple little 'tics' on the head cover) and sounds great too! As touched on above, the heads are in beautiful condition. Spindle tridents are in great condition with strong springs, and no cracks, splits or broken spines.

Akai GX-630D Features include:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

-True "WORLD AC POWER"™ allows unit to be operated on 50 or 60 Hz AC and will select voltages from 110v, 120v, 220v and 240 volts AC input.

Original Akai GX-630D Specifications:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?


As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records perfectly, AGAIN, records at ~-1.5dB @ 1kHz! Both original feet / skids intact and perfect. Wood grain, vinyl wrapped case in great condition as well.

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

Also includes our normal accessory kit that includes a 'Play-Back Demo' made on the deck, a 7" plastic take-up reel, and a couple of other assorted 7" tapes to play with.
Includes a pdf / 'e-copy' download of the Akai GX-630D Owners manual, and if desired, a copy of the Akai GX-630D Service manual. Measures 17.5" wide x 9.5" deep x 15.5" high and weighs 42 lbs unpacked. Includes our standard 30 day limited warranty.
Akai GX-630D Reel to Reel Tape Deck
Cond. 8.5+++
SOLD 1/27/2021
SHIPPED TO GEORGE IN FLORIDA

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

  (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











NEW LISTING 12/26/2020
(Click on above thumbnails to enlarge photos)
warranty
RESTORED / REFURBISHED / FULLY SERVICED / WARRANTED
AKAI OPEN REEL TO REEL TAPE RECORDER
 10.5" / 1/4" STEREO TAPE DECK
AKAI GX-630D / GX630D REEL TAPE DECK
#...0510
 4-TRACK / 2-CHANNEL
  2-SPEED / 3 HEAD ("GX" HEADS)
 5" / 7" / 10.5" (THE BIG ONES) REEL CAPACITY
NOT A 'BEAUTY CONTEST' WINNER
  Circa 1975-79
MIJ
SOLD 2/3/2021
SHIPPED TO DAVID IN MARYLAND

This unit has its fair share of 'battle scars' and up close, isn't going to win any beauty contests, but...

ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, re-lubed and reassembled.

ü Pinch-roller ‘Lift Mechanism’ completely disassembled, cleaned and re-lubed.

ü Capstans burnished

ü Impedance roller removed, bushings and axels cleaned and re-lubed

ü Rubber pinch rollers have been properly resurfaced and then re-conditioned

ü Brand new counter belts installed #039 & #042

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Missing skids replaced with 'oversize' feet.

ü Replaced AC line cord

ü Originally missing 'Monitor' switch replaced with an original / OEM switch from another GX-630D.

ü Power supply CB adjusted to correct 24VDC which enables best performance from Cap motor, Playback and Record amp circuits (slightly low Voltage was originally causing a slight 'low record' situation on the left channel. Also repaired shorted diode on 'Servo' cb.

ü All three motors test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" and 10.5" tapes

ü Brakes adjusted on fast wind modes on both 7.5” and fully loaded 10.5” reels from top speed.

ü Internal pots, switches and controls cleaned and tested for noise-free function.

ü We adjusted the VU meters electronically w/ factory test tone tapes, as well as the internal playback and record levels.

ü Deck has been fully calibrated, tested, and found to perform well.

ü Both spindles in decent alignment. The 'Supply' spindle has a bit of run-out, but nothing that affects performance.

ü All 4 tape guides rotated 180 degrees to present 'fresh' surface to tape.

ü Slight 'flutter' issue was improved by 'truing' capstan more accurately

ü 'Record' lamps replaced with new 24VDC bulbs

ü We also adjusted the reel table heights.

ü Heads have virtually no appreciable, visible wear.

ü Recording tests performed. Here’s how it tested at 0dB;
with Maxell UDXL-II tape: 1kHz = ~-2.5dB L&R
with Ampex GM-456 tape: 1kHz = ~+1.5dB L & ~+0.5dB R
with TDK Audua tape: 1kHz = ~-3.5dB L & ~-2.5dB R

ü Speed tested to 99.8% accuracy with 1kHz factory test tape (meaning 1kHz calibration tape plays back at 1002Hz +/- 1Hz)

ü  Floor noise measured at >-60dBm

ü This Akai GX-630D functions, plays, and records perfectly (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb / testing ~ 30 hours).
____________________________
Looks FAIR, but is "Ready-to-go"! The very sought after Akai GX-630D Stereo Reel to Reel tape deck. Will play / record stereo 1/4" tapes on reels 5, 7 & 10.5". This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. This one made it through and all functions test great! If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. Heads have no appreciable, visible wear, check the record test results above, evidence they’re sounding great!

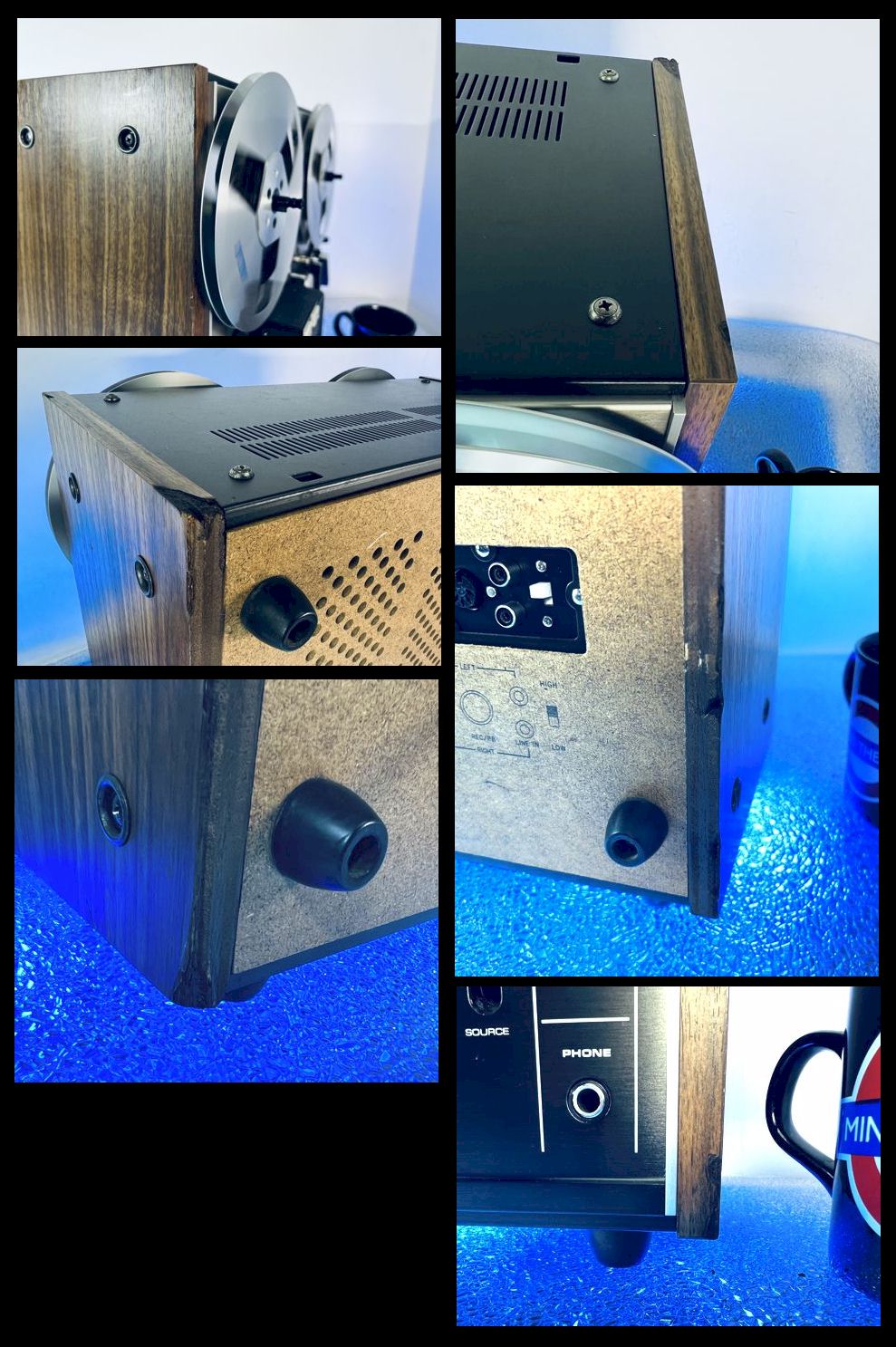

So there's a 'laundry list' of minor, cosmetic issues with this unit, and there's a separate photo collage above that shows them, but here's the list;
Wood grain, vinyl wrapped case has numerous chips / dings, and a nice cigarette burn on top. The face has crescent reel flange marks (those are actually fairly common on many machines). The pinch roller is missing it's hub cap. There some scratches under the capstan. The head cover has numerous scratches and some 'yellow' staining (wouldn't come off). There's some light corrosion under the meters on the aluminum bezels. The 'supply' reel spindle has the outermost, end of it's tip chipped off (still functionally fine). The rear vent panel, has been replaced with a non-original one. The originally missing skids have been replaced with oversize feet (actually a 'good thing').

 As touched on above, the heads are in beautiful condition. Spindle tridents are in great condition with strong springs, and no cracks, splits or broken spines.

Akai GX-630D Features include:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

-True "WORLD AC POWER"™ allows unit to be operated on 50 or 60 Hz AC and will select voltages from 110v, 120v, 220v and 240 volts AC input.

Original Akai GX-630D Specifications:

HEY, WHY ALL THE 'X'd' OUT / OMITTED SPECS AND TEXT?

As stated earlier we have completely gone through it cleaning, lubing, adjusting, demagnetizing and testing everything. Plays and records perfectly, AGAIN, records ~0 to -3.5dB @ 1kHz depending on what type of 'Quality' tape you use. Lesser quality tapes will likely result in drastically lower levels!

These are great machines. I have had this one myself for years. It's a blast to put on a BIG 10.5" reel with Pink Floyds, "Dark Side of the Moon".
Also includes our normal accessory kit that includes a 'Play-Back Demo' made on the deck, a 7" plastic take-up reel, and a couple of other assorted 7" tapes to play with.
Includes a pdf / 'e-copy' download of the Akai GX-630D Owners manual, and if desired, a copy of the Akai GX-630D Service manual. Measures 17.5" wide x 9.5" deep x 15.5" high and weighs 42 lbs unpacked. Includes our standard 30 day limited warranty.
Akai GX-630D Reel to Reel Tape Deck
Cond. 7.5
(due to cosmetic issues)
SOLD 2/3/2021
SHIPPED TO DAVID IN MARYLAND

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

  (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)









AKAI
MODEL GX-635D
SOLD




USED
AKAI
MODEL GX-1820
 STEREO
REEL TO REEL
SOLD





AKAI
MODEL GX-1820
 STEREO
REEL TO REEL /
8-TRACK CARTRIDGE
TAPE DECK
SOLD



-

NEW LISTING
(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL GX-4000D
4-TRACK STEREO / MONO / 2-CHANNEL
3-HEADS / 2-SPEED
REEL TO REEL R2R
1/4" TAPE DECK
SOLD 4/12/07





NEW LISTING 4/1/05
(Click on above thumbnails to enlarge photos)
AKAI
MODEL GX-4000D
4-TRACK STEREO / 2-CHANNEL
3-HEAD / 2-SPEED
REEL TO REEL R2R
1/4" TAPE DECK
"WORLD AC POWER" ™
Circa 1974-76
SOLD 5/17/05





NEW LISTING 12/17/2021
(click on above thumbnails to enlarge photos)
warranty
RESTORED / REFURBISHED / FULLY SERVICED / WARRANTED
AKAI OPEN REEL TO REEL TAPE RECORDER
AKAI MODEL GX-4000D
SOLD



NEW LISTING 11/12/2021
 (Click on above thumbnails to enlarge photos)
warranty
VINTAGE, FULLY SERVICED / REFURBISHED / RESTORED
VINTAGE AKAI AUTO-REVERSE CASSETTE TAPE DECK
AKAI GXC-730D
With 'AUTO-REVERSE' AND DOLBY NR
and REAL "VU" METERS
#...9379
Circa early 1976-79
Made in Japan
SOLD 11/15/2021
SHIPPING TO STANLEY IN NEVADA

Original issues observed (mostly the issues common with all 40 year old tape decks): "power switch not working correctly, broken eject switch lever, sluggish fast wind, noisy internal record switches, noisy level controls, PB and REC levels low and un-matched, clutches slipping way too much to be usable, L-Channel Bias way out. Pinch rollers have un-even wear. Missing one input level knob."

ü Our technician has completely and EXTENSIVELY gone through and 'Certified' this unit which involves complete disassembly of the transport (not an easy task on this table), cleaning inside and out, COMPLETELY DISASSEMBLING, cleaning and re-lubricating all internal mechanisms and the balance of efforts listed below.


ü Heads inspected for excessive wear (obviously we do this 'early on' as 'excessive' wear will usually negate any further restoration work, although as these are 'GX' heads, it would be pretty hard to put much 'wear' on them). These have virtually NO visible wear to them.

ü Internal DC power supply tested

ü Capstan motor disassembled, cleaned and re-lubed.

ü Both Flywheel belt surfaces solvent cleaned

ü Bronze Flywheel bushings solvent cleaned

ü Both Flywheel thrust pads cleaned

ü Capstan burnished

ü Reel drive tires (7 IN ALL!!!) replaced and / or reconditioned for trouble-free service. (These are actually much more important to replace on this deck (and most) than the belts. Without these, the deck won't fast wind very well, and will likely 'eat tapes' as the 'take-up' reel won't turn properly)

ü New internal Capstan Drive belt (#FRM9.2) installed for trouble-free service. (so this operation required extensive effort. The belts that came in the so called "correct kit" currently available for the Akai GXC-730D, proved to cause incorrect speed in two different decks. We were then forced to find new belts that by 'trial and error' allowed enough 'traction' and the most speed accuracy. In fact, none of the belts in the 'official kit' that is currently available for an Akai GXC-730D allowed the deck to operate at anything resembling correct speed when tested on a frequency counter with factory test tapes!)

ü New Counter belt (#.041) installed as well as 'spindle' belt #029.

ü Both hub spindles clutches were slipping and / or causing 'chatter'. Both were disassembled, shims added, compression springs adjusted, pads and plates re-surfaced, lubed where necessary and re-installed. (This was by far one of the more time consuming aspects to restoring this deck!)

ü Replaced broken Eject paddle button from another GXC-730D donor unit

ü Replaced non-repairable Power switch assembly from another GXC-730D donor unit

ü Replaced missing input level knob from another GXC-730D donor unit (some surface scratches to the replacement knob)

ü Rubber pinch rollers have been reconditioned

ü Tape well door pins re-aligned / re-worked / repaired

ü Heads have been cleaned and de-magnetized as well as the entire transport.

ü Head alignments and azimuth checked and adjusted as necessary for 'peak performance' with O-Scope. As it's an 'Auto-Reverse' deck, these adjustments are required separately FOR BOTH DIRECTIONS!

ü All internal pots, switches and controls cleaned and tested for noise-free function.

ü Head swivel for Auto-Reverse disassembled, cleaned and lubed as it was stiff to move (this was one of the more time consuming operations for this deck).

ü Both d'arsonoval VU meters static adjusted, tested and working fine.

ü Both VU meter illumination lamps replaced w/ #25-445 6.3V / 250mA.

ü Both VU Direction illumination lamps replaced w/ 4 new bulbs.

ü Both hub spindles NOW in perfect alignment.

ü FF, REW, & Play transport functions all test perfectly and controls tested for positive / accurate responsive.

ü Heads in great shape as well, with many years of performance left in them and head alignment / azimuth has been checked for peak performance.

ü Playback meters zero adjusted 'electronically' with factory test tone tape.

ü Tape Counter Function tested

ü Pinch roller and heads all in GREAT condition!!!

ü Floor noise tested to -60dBm with empty shell tape

ü Speed tested to 98% accuracy with 1kHz factory test tape (meaning 1kHz calibration tape plays back at 980 Hz +/- 1Hz)

Only issue still remaining is that "Fast Wind" will slow more than typical as it nears completion of a side. This cannot be improved anymore, and still does an adequate job.

ü Deck has had just over 23 hours of restoration work done.

Face is made of beautiful brushed aluminum, and overall the deck is in great cosmetic condition. One of the input level knobs has a few scuffs as mentioned above. Following the extensive restoration, we did 'test recordings' of a 'ddd' CD on 2 tapes; Maxell Normal Bias, TDK 'SA' High Bias, and Maxell 'XL-II' High Bias. We found that both the "Maxell's" performed VERY well on this particular deck.


ü Plays great and records well with 1kHz, recorded 0dB playing back @ L=-2dB & R=-2dB on Maxell UDXL-II tapes. With DDD CD we experienced ~ -3 to -4dB, but great, overall sonics! (we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).

ü Recording tests performed with Maxell Normal Bias and Maxell High-Bias UDXL-II (Gold / Black) Tapes.
Here’s the results;
Maxell UDXL-II: 1KhZ with Dolby & CrO2 position @ 0dB = -2dB L & -2dB R with virtually no artifacts
Maxell UDXL-II: 1KhZ W/O Dolby & CrO2 position @ 0dB = -2dB L & -2dB R with virtually no artifacts
Maxell UDXL-II: 1KhZ with Dolby & Normal position @ 0dB = -2.5dB L & -3dB R with virtually no artifacts
Maxell UDXL-II: 1KhZ W/O Dolby & Normal position @ 0dB = -2.5dB L & -2dB R with virtually no artifacts
Recorded program from "ddd" source @ 0dB sounds great as well. It's nice recording on a deck that's 'dialed in' properly)

Total technician time to restore ~28+ HOURS!
  ____________________________

 Includes original box and packing. Comes with an 'e-copy' / pdf download of the Akai GXC-730D owners manual and color brochure.
Measures 17.3" wide x 11.9" deep x 6.9" tall and weighs 26.5 lbs unpacked. Comes with our 30 day limited warranty.
AKAI GCX-730D
Cond. 8.5
SOLD 11/15/2021
SHIPPING TO STANLEY IN NEVADA

(tape shown in photos not included. We do ship our decks with a 'pre-recorded' tape for playback, made on this 'specific' deck, and a tape to 'practice record' on.)

(Above text, in it's entirety, property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)







 (Click on above thumbnails to enlarge photos)
  warranty
EXTENSIVELY SERVICED W/ WARRANTY
VINTAGE AKAI CASSETTE TAPE DECK
HUGE
AKAI GX-F60R
"GX/TWIN FIELD" HEAD
AUTO-REVERSE & DOLBY NR
#...4233
MADE IN JAPAN!
Circa 1980-83





NEW LISTING 1/15/08
(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL M-10 M10
#...0714
 4-TRACK / 2-CHANNEL
 STEREO
3-MOTOR
3-SPEEDS
AUTO-REVERSE
OPEN
REEL TO REEL
1/4" TAPE DECK
SOLD TO
PMB GOVERNMENT CENTER 1/15/08



AKAI
RC-16
Tape Deck Remote.
SOLD

AKAI
RC-20
Tape Deck Remote.
SOLD






AIWA
MODEL R450
SOLD




AKAI
MODEL X-150D
OPEN
REEL TO REEL
TAPE DECK
SOLD









NEW LISTING 6/13/07
(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL X-150D
"CUSTOM DECK"
4-TRACK STEREO / 2-CHANNEL
3-SPEED
OPEN
REEL TO REEL
1/4" TAPE DECK
SOLD 7/17/07





NEW LISTING 1/1/09
(Click on above thumbnails to enlarge photos)
warranty
AKAI
REEL TO REEL
     MODEL X-150D X150D
#...1507
4-TRACK / 2-CHANNEL STEREO
3-SPEED
OPEN REEL
1/4" TAPE DECK
"WORLD AC POWER" ™
 Circa 1967-72
SOLD 1/4/09





NEW LISTING 8/20/06
(Click on above thumbnails to enlarge photos)
warranty
AKAI
 MODEL X-200D
 STEREO REEL TO REEL
TAPE DECK
 "WORLD AC POWER" ™
SOLD 9/26/06




NEW LISTING
(Click on above thumbnails to enlarge photos)
AKAI
         MODEL X-200D X200D
 4-TRACK / 2-CHANNEL
 STEREO
3-MOTOR
2-SPEEDS
AUTO-REVERSE
OPEN
REEL TO REEL
1/4" TAPE DECK
"WORLD AC POWER" ™
Circa mid 1970's
SOLD 2/20/06






NEW LISTING 11/23/04
(Click on above thumbnails to enlarge photos)
AKAI
MODEL X-200D
 4-TRACK / 2-CHANNEL
 STEREO
3-MOTOR
2-SPEEDS
AUTO-REVERSE
OPEN
REEL TO REEL
1/4" TAPE DECK
"WORLD AC POWER" ™
Circa mid 1970's
SOLD 12/24/04






AKAI
X-330D
SOLD





NEW LISTING 10/7/05
(Click on above thumbnails to enlarge photos)
AKAI
MODEL X-330 / 330D
10.5", 7" & 5" REEL
 4-TRACK / 2 CHANNEL STEREO
3-HEAD / 3-SPEED / 3-MOTOR
AUTO-REVERSE
REEL TO REEL R2R
1/4" TAPE DECK
w/ built in amplifier and speakers too!
Circa 1969-72
"WORLD AC POWER" ™
SOLD 10/23/05









NEW LISTING 9/19/07
(Click on above thumbnails to enlarge photos)
warranty
AKAI
MODEL X-360D
 4-TRACK / 2-CHANNEL
4-SPEED*
3-HEAD /  3-MOTOR
MANUAL / AUTO-REVERSE
REEL TO REEL R2R
1/4" STEREO TAPE DECK
SOLD 11/30/07





NEW LISTING 5/16/20
(Click on above thumbnails to enlarge photos)  warranty
  warranty
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE AKAI REEL TO REEL TAPE DECK
AKAI X-1800SD (TYPE-C)
COMBO REEL / 8-TRACK CARTRIDGE
4-TRACK / 2-CHANNEL STEREO or 4-TRACK / 1-CHANNEL MONO
AKAI's "CROSS-FIELD™" BIAS HEAD
4*-SPEEDS
1/4" REEL TO REEL

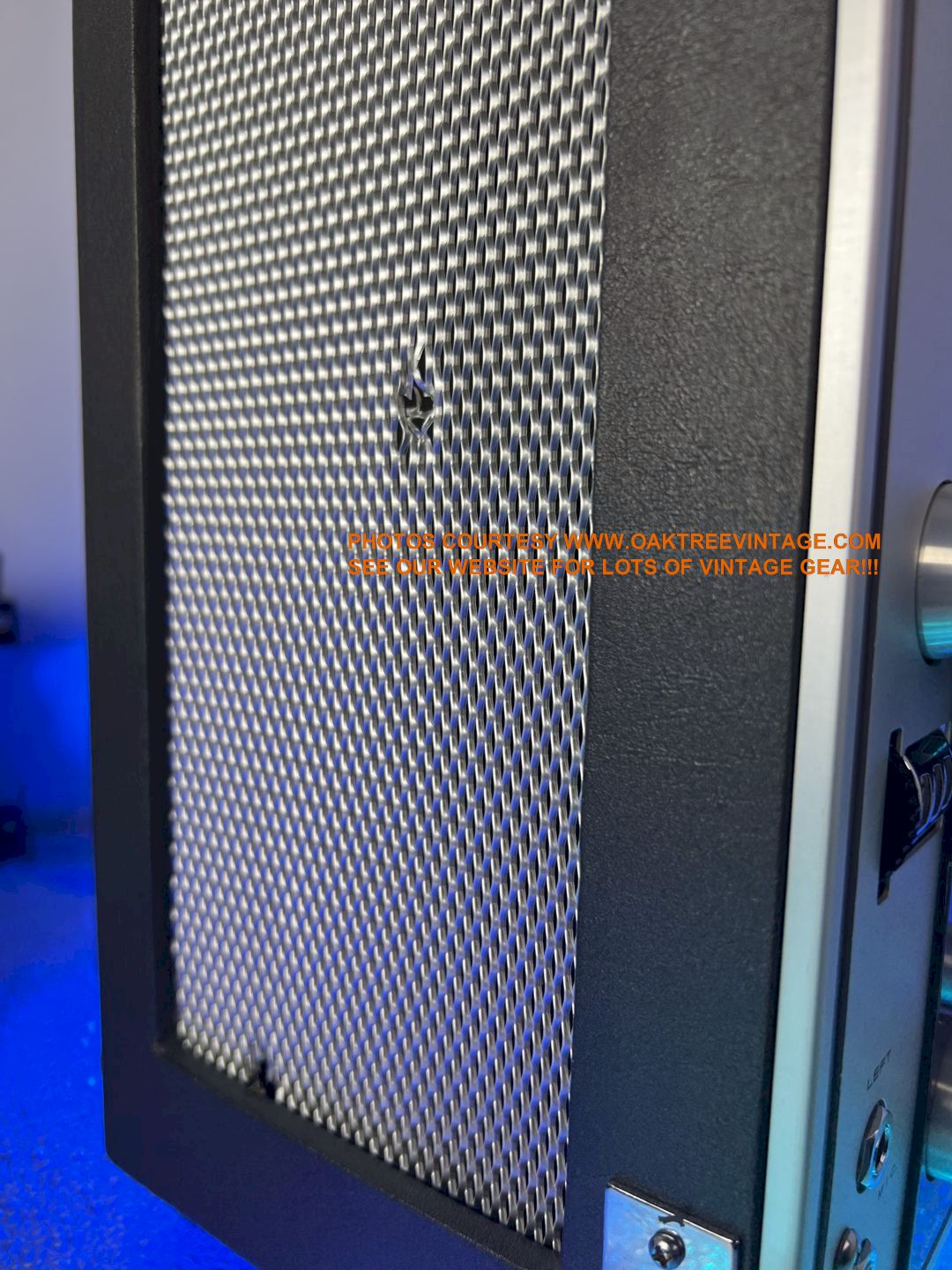

BUILT-IN AMP AND SPEAKERS
#...3560
MIJ
  "WORLD AC POWER" ™
Circa 1970-72
SOLD 5/26/20
SHIPPED TO BOB IN COLORADO

ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, de-greased, and re-lubed including; Pinch Roller Pivot Arm, EOT Sensor Arm, Left Tape Tension arm mechanism, Capstan Motor (disassembled, cleaned and re-lubed w/ 30wt), Capstan and flywheel shaft removed cleaned / re-lubed w/30wt (pretty much every moving part)

ü Transport cams checked for usable condition prior to any work starting (here in the West, we have less of an issue with the typical deterioration that you see in more 'humid' climates such as the Mid-West, South and Coasts (be very careful getting an Akai from the early to mid 1970's that has spent most of it's life in a 'humid' environment).

ü Entire 8-Track transport assembly was removed and disassembled for service, including burnishing it's connector, and track selector contacts.



ü Motor completely disassembled, cleaned, & re-lubed

ü Voltage re-set to correct 120VAC

ü Circuit board edge card contacts and connectors burnished w/ solvent and fiberglass pen



ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted

ü Reel table height correct

ü pinch-roller 'arm' mechanism completely disassembled, cleaned and re-lubed

ü Capstan / flywheel removed, bushings and axles cleaned and re-lubed and flywheels burnished

ü Capstan motor pulley burnished

ü Capstan cleaned (as well as the internal and external surfaces of the original speed sleeve)

ü ALL Internal idler tires cleaned / reconditioned

ü Rubber pinch roller removed and re-conditioned

ü New MAIN drive belt, #FR13.4 installed

ü Brand new counter belt, #047 installed

ü Repaired faulty motor 'Speed Switch' that was causing motor run intermittency

ü Repaired damaged internal wire insulation from previous service

ü Repaired Tape EQ switch

ü Repaired Cart / Reel selector switches

(Note; these units have numerous internal switches other than what seems to be the obvious / visible ones upon initial disassembly. Most switches have ADDITIONAL switches located further inside unit, connected with linkages that also must be serviced. We've done a few of these now, and you learn.)

ü Replaced 'Track Change' relay, 1000uf electrolytic capacitors on 8-track transport board for quieter track changes

ü Heads have been cleaned and de-magnetized as well as the entire transport (reel and 8-Track Cartridge).

ü Brakes adjusted on fast wind modes at ALL points thru a tape. It's a fine line between having the brakes actuate with too much tension, 'abruptly' stopping the tape (risking stretching / breaking of tape) or too loose (allows tape to 'dump'). (VERY difficult to do on this series). Brakes optimized for 7" reels.

ü Motor torque test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" reels.

ü Internal pots, switches (including linear record switch and 'rotary wafer' switches) and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 45+ years) (also a bit easier on this "Type-C" version. Just FYI).

ü External / User adjustable pots, switches and controls cleaned on the playback / record amp and tested for noise-free function

(tech notes; Line out set to 0dB using 0dB reference @ 700Hz. Vol controls @ approx 1:30)

ü Replaced VU meter lamps / bulbs #25-080

ü Cleaned 8-Track cartridge heads

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü We adjusted the output, 'Minimum Input', 'Specified Input', 'Record Level' and 'Bias' all to spec, then further adjusted 'Bias' for Ampex GM-456

ü Both spindles in perfect alignment.

ü Heads in great shape as well, with many years of performance left in them

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 99.3% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 1007Hz +/- 2Hz. {well within spec by 7Hz!}).

ü Reel Tape deck adjusted to record VERY WELL. Biased for Ampex GM 456 studio tape @ 0dB!!!

ü 'Real World, DDD CD recorded sounds great w/ Ampex GM456.

ü 'Electronic' Floor noise measured at >-60dB w/ blank tape, L&R.

ü Motor had a slight amount of run-out detected at the belt pulley (side to side movement / play) which causes excessive, ambient noise, so we swapped it with another of the exact motor (we had a 'donor unit'), which was then also, completely disassembled, cleaned and lubed w/ 30W.

(tech notes; internal amp tests well w/ ~ 1mVDC across outputs w/ 8 Ohm load. Also as a side note, the Akai X-1800SD C-Type utilizes the same output transistors as the later Akai X-1810.)

ü This AKAI X-1800SD functions, plays, and R2R portion records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy). Unfortunately, while the "8-Track" tape deck plays VERY WELL, we were not able to get it to record, and didn't want to 'chase' it indefinitely thus raising the final price disproportionally (Total time investment in refurb process / and final testing ~ 32 hours).

The AKAI X-1800SD Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 21 hours of bench time.

Following mechanical / electronic refurb, entire unit was cosmetically detailed inside and out. Face is made of aluminum and is dent free and in great condition. Cabinet covered in real TEAK wood veneer, is in decent condition with just a few 'battle scars', mostly to the 'top' side of the wood case (see photos above) and just had a fresh coat of Howards 'Restore a Finish' and followed Howards 'Feed-n-Wax'. All the case hardware intact and working, and had all it's fasteners torqued down. Deck looks and sounds great!
   ____________________________

Looks great & "Ready-to-go"  AKAI X-1800SD Stereo Reel to Reel tape deck. Very 'famous' and popular reel tape deck. Many of the folks stationed overseas in the military during Viet Nam that purchased a Reel to Reel came back with an 1800SD (or one of it's siblings). Unfortunately of course, 50 years has not been kind to Akai Reel decks (or any electro-mechanical devices that are 20 years old or older). The internal lubes were never meant to last that long, certainly without maintenance, and 'rubber' doesn't 'age well' either, thus requiring the above stated work. There's also the Akai Transport cams that need to be inspected for their degree of condition and replaced if necessary (difficult and potentially expensive). We've already inspected them for any detrimental issues and certified them ready to go. Will play & Record stereo 1/4" tapes on reels up to 7". This is one of the few reel to reel decks we get in that make it to our finished page. If you're looking for a reel to reel deck to "actually use" then here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through. Playback & transport functions test great and records well! 8-Track, built-in amp and speakers all work great as well. Looks and sounds great too!
Another note I'd like to make is that the 8-Track is probably the BEST I've ever auditioned (and we've done A LOT of 8-Track decks, and I used to sell them when NEW).

AKAI X-1800SD Features include:

- 4-Speed* Reel to Reel, 8-Track Cartridge deck w/ built-in speakers and amp
- DURABLE AC powered capstan motor (While "AC" Capstan motors generally have a bit more 'mechanical noise' that is typically noticeable in quieter environments, they are known for lasting decades longer than the DC capstan motors of the 'later' models)
- Up to 7" reel capacity (while you could go down as far as 3" in diameter, the torque and braking on this deck has been optimized for 7"reels)
- Akai's "Cross-Field" Bias Head, gets the tape 'bias signal' off of the 'Record' head (so the 'Record Head' can be concentrated only on recording the 'music' signal) and biases with a separate head
- One-Micron Gap Recording Head (reel)
- Stereo or MONO playback / recording (reel tape) (means that in "MONO" mode, you can record 4 separate passes on a tape or playback tapes made on older decks that did 'four separate tracks')
- Quad speeds at 7.5 ips / 19cms (with included speed sleeve adapter), 3 3/4ips / 9.5 cms,1 7/8 ips / 4.8 cms & *15 ips / 38cms (requires optional 15ips kit, not available from us.
- As it's got its own, Built-in Power amp and speakers, it can be used as a 'stand alone' unit. (very handy for a media transfer business setting up another 'station' without a stereo / audio system)
- Stereo playback / recording 8-Track Cartridge tape
- Continuous Play or 'End of Tape' Stop for 8-Track (however at this point the 'Auto-Stop' does not seem to recognize the 'sensor' tape on 8-tracks so only does "Continuous Play" at the end of track #4)
- 8-Track 'Track Selector' w/ typical indicator lights
- Auto-Off for Reel deck
- Can also transfer from Reel tape to 8-Track Cartridge tape*
- Built-in 'Tape Cleaner' pad (can also lube 'back coated' tapes so they don't squeak if you can obtain the correct silicone lube. No, we don't know where to get it at this point...yet)
- Dual front mounted 1/4" Microphone inputs
- Side mounted 1/4" Headphone jack
- RCA and DIN I/O's
- Separate L&R Input / Volume controls
- Separate L&R Tone controls (for built-in amp)
- Internal Speaker On/Off switch (Auto switches when using 'External' speakers)

- NOT an OFFICIAL feature, BUT one function this deck will allow is a sort of CUE by slightly pushing up on the 'pause' lever, while the deck is in play, you can get a 'variable speed' CUE function. You'll either need to very gradually release the pressure or with your other hand move the 'Play' lever to 'Stop' when you reach the spot you wanted to 'cue to' or the tape will track off the front edge of the pinch roller. Takes a bit of practice to get it right.

(*15 ips ONLY w/ optional speed sleeve / pinch roller kit (not typically avail. The 15ips was utilized for transferring Reel tape signals to the 8-Track tape. While the Reel deck could record at 15ips, there's not a 15ips Tape EQ setting, which may or may not be detrimental to your needs)
-True "WORLD AC POWER"™ allows unit to be operated on 50 or 60 Hz AC and will select voltages from 110v, 120v, 220v and 240 volts AC input.

AKAI X-1800SD Specifications as follows:

Heads / Track system: Reel Heads; 4-track 2-channel / Stereo or 1-Channel / Mono heads for stereo or mono, Erase, Recording / Playback & Cross-Field Bias head
Heads / Track system: 8-Track Cartridge; 2-track 2-channel / Stereo  Erase, Recording / Playback
Motor: Two Speed, Induction Motor (drives Reel and Cartridge capstan)
Transport Control Type: Direct linked Mechanical
Maximum Reel capacity: 7" (5" and 3" as well) (brakes and motor torque optimized for 7" reels)
Tape speeds: 1 7/8 ips, 3.75 ips, 7-1/2 ips) and 15 ips w/ optional kit
Tape speed Deviation: ± 3.0% (ie: 1kHz may = 970Hz-1030Hz)
Fast Wind speed: ~120 secs for 1200 feet (7" reel)
Wow & Flutter: Reel; <0.18% RMS @ 7.5 ips
THD: Reel; <2% @ Line Level out
Frequency response: Reel; 30Hz to 23,000Hz (3dB @ 7-1/2 ips)
 &
30Hz to 18,000 Hz @ 3-3/4 ips
 &
30Hz to 9,000 Hz @ 1 7/8 ips
Cartridge; 50Hz to 15,000Hz (3dB @  3-3/4 ips
Signal to Noise Ratio: > 50dB on R2R and >45dB on Cartridge
Erase Ratio: Reel; >-70 for all tracks Cartridge; >-65dB
Crosstalk rejection: Reel; >-65dB in Mono and >-43dB in Stereo
Cartridge; >-50dB in Stereo
Input Level (Line): 60mV - 2.5V @ 150k Ohms
Input Level (Mic): 0.5mV - 20mV @ 30k Ohms
Output Level (Line): 1.228V (0VU) @ 250Hz from recorded tape signal
Bias Frequency: 60kHz
Built-In Power Amp Output: 12 W (6W/Ch) via discrete output transistors
Built-In Speakers: Dual 4", Full-Range

This is only the second AKAI X-1800SD we restored in ~24 years. Great machine for playback / archiving your tapes to CD or Hard Drive or for recording new tapes. This is a beautiful deck. Performs incredibly well following extensive refurbishing. The wood case is in great 'structural' condition. It exhibits the typical and expected finish fading / checking / dings. The decks face, knobs, covers and all cosmetics are fabulous!

This machines 'Forte' would be best suited for a 'media transfer' business, especially where you have a bench / station that doesn't have dedicated sound system (as it's go it's own, built-in amp and speakers) or for someone who has a lot of tapes to preview prior to sending for transfer, or for a library or university with a lot of tapes of different speeds / and track formats to transfer. If you're going to be listening to 'quiet, chamber' music while reading, the "AC powered" motor / fan noise could be noticable while 'casually' listening to quiet passages of music. If you tend to like the volume at more than 'low, back ground' levels, then you'll not likely notice "AC powered motor" hum. There is a bit of "60 cycle" hum on the outputs (typical again, of earlier, AC motored decks) that will be noticeable if you have the decks outputs above about "3:00 O'clock" / 75% of the way up, your pre-amp is above 11:00 O'clock (almost 'half way') up and the deck is in 'Pause' or playing a very quiet passage of music. Probably won't be noticed in most playing situations. If you're utilizing if for 'media transfers', you can simply turn on a 60 Hz filter in the software to remove / reduce it. If you have a graphic EQ, you can do the same, again, if you have the deck and your volume both turned very high.

Measures 13.5" wide x 15" tall x 9.5" deep and weighs 38 lbs unpacked. Includes a set of 'fresh' spindle stoppers / reel clamps. Comes with a pdf 'e' copy of Akai X-1800SD owners manual and original brochure. Can include the AKAI X-1800SD Service Manual pdf 'e' download if you wish as well. Includes our standard 30 day limited warranty.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)
 AKAI X-1800SD REEL TO REEL TAPE DECK
Cond. 8.5
SOLD 5/26/20
SHIPPED TO BOB IN COLORADO

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

  (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)











       NEW LISTING 12/12/19
(Click on above thumbnails to enlarge photos)
  warranty
RESTORED / REFURBISHED / FULLY SERVICED
VINTAGE AKAI REEL TO REEL TAPE DECK
AKAI X-1800SD (TYPE-C)
COMBO REEL / 8-TRACK CARTRIDGE
4-TRACK / 2-CHANNEL STEREO or 4-TRACK / 1-CHANNEL MONO
AKAI's "CROSS-FIELD™" BIAS HEAD
4*-SPEEDS
1/4" REEL TO REEL
BUILT-IN AMP AND SPEAKERS
#...3198
MIJ
  "WORLD AC POWER" ™
Circa 1970-72
SOLD 4/2/20
SHIPPING TO BOB IN FLORIDA

ü Our technician has completely gone through and 'Certified' this unit.

ü We have completely and extensively gone through the mechanicals and electronics of this unit.

ü Entire transport was disassembled down to the chassis, and every mechanical part was cleaned, de-greased, and re-lubed including; Pinch Roller Pivot Arm, EOT Sensor Arm, Left Tape Tension arm mechanism, Capstan Motor (clean and re-lube), Capstan and flywheel shaft removed cleaned / re-lubed (pretty much every moving part)

ü Transport cams checked for usable condition prior to any work starting (here in the West, we have less of an issue with the typical deterioration that you see in more 'humid' climates such as the Mid-West, South and Coasts (be very careful getting an Akai from the early to mid 1970's that has spent most of it's life in a 'humid' environment).

ü Entire 8-Track transport assembly was removed and disassembled for service, including burnishing it's connector, and track selector contacts.

ü Voltage re-set to correct 120VAC

ü Circuit board edge card contacts and connectors burnished w/ solvent and fiberglass pen

ü Tape Tension arms disassembled, cleaned and re-lubed, and their springs adjusted

ü Reel table height correct

ü pinch-roller 'arm' mechanism completely disassembled, cleaned and re-lubed

ü Capstan / flywheel removed, bushings and axles cleaned and re-lubed and flywheels burnished

ü Capstan motor pulley burnished

ü Capstan cleaned (as well as the internal and external surfaces of the original speed sleeve)

ü ALL Internal idler tires cleaned / reconditioned

ü Rubber pinch roller removed and re-conditioned

ü New MAIN drive belt, #42-550 installed

ü Brand new counter belt, #048 installed

ü Heads have been cleaned and de-magnetized as well as the entire transport (reel and 8-Track Cartridge).

ü Brakes adjusted on fast wind modes at ALL points thru a tape. It's a fine line between having the brakes actuate with too much tension, 'abruptly' stopping the tape (risking stretching / breaking of tape) or too loose (allows tape to 'dump'). (VERY difficult to do on this series). Brakes optimized for 7" reels.

ü Motor torque test perfectly. Following above adjustments, Reel Start and Stop tested at beginning, middle and end of 7" reels.

ü Internal pots, switches (including linear record switch and 'rotary wafer' switches)and controls cleaned and tested for noise-free function (initially, of course, had typical static / noise which is to be expected in an 'un-serviced' deck after 45+ years) (also a bit easier on this "Type-C" version. Just FYI).

ü External / User adjustable pots, switches and controls cleaned on the playback / record amp and tested for noise-free function

(tech notes; Line out set to 0dB using 0dB reference @ 700Hz. Vol controls @ approx 1:30)

ü Replaced VU meter lamps / bulbs #25-450

ü Cleaned 8-Track cartridge heads

ü We adjusted the VU meters mechanically and electronically w/ factory test tone tapes, as well as the internal playback levels for both directions independently and record levels.

ü We adjusted the output, 'Minimum Input', 'Specified Input', 'Record Level' and 'Bias' all to spec, then further adjusted 'Bias' for Ampex GM-456

ü Both spindles in perfect alignment.

ü Heads in great shape as well, with many years of performance left in them

ü Playback and Record Head alignment / azimuth was adjusted for peak performance with factory test tone tape and oscilloscope.

ü Speed tested to 98.8% accuracy following refurb (meaning that our 'verified' 1000Hz test tape now plays back at 988Hz +/- 2Hz. {well within spec by 18Hz}).

ü Adjusted to record VERY WELL. Biased for Ampex GM 456 studio tape with the following results w/ Input at ~ 9:00 when recording, then Output control ~"2:00 PM" for playback.

ü 'Real World, DDD CD recorded sounds great w/ Ampex GM456.

ü 'Electronic' Floor noise measured at >-60dB w/ blank tape, L&R.

ü Motor had a slight amount of run-out detected at the belt pulley (side to side movement / play) which causes excessive, ambient noise, so we swapped it with another of the exact motor (we had a 'donor unit'), which was then also, completely disassembled, cleaned and lubed w/ 30W.

(tech notes; internal amp tests well w/ ~ 1mVDC across outputs w/ 8 Ohm load. Also as a side note, the Akai X-1800SD C-Type utilizes the same output transistors as the later Akai X-1810.)

ü This AKAI X-1800SD functions, plays, and records VERY WELL (and we really put them through the paces, testing both with well mixed, recently recorded CD material and CD recorded / factory test tones looking for correct head Azimuth and speed accuracy).  (Total time investment in refurb process / and final testing ~ 21 hours).

The AKAI X-1800SD Stereo Reel to Reel tape deck. Ready to GO! This is one of the few reel to reel decks we get in that make it to our finished page. Great performer. If you're looking for a reel to reel deck to "actually use" here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through with flying colors after about 21 hours of bench time.

Following mechanical / electronic refurb, entire unit was cosmetically detailed inside and out. Face is made of aluminum and is dent free and in great condition. Cabinet covered in real TEAK wood veneer, is in decent condition with just a few 'battle scars', checking / fading to the finish (see photos above) and just had a fresh coat of Howards 'Restore a Finish' and followed Howards 'Feed-n-Wax'. All the case hardware intact and working, and had all it's fasteners torqued down. Deck looks and sounds great!
   ____________________________

Looks great & "Ready-to-go"  AKAI X-1800SD Stereo Reel to Reel tape deck. Very 'famous' and popular reel tape deck. Probably half the folks stationed overseas in the military during Viet Nam that purchased a Reel to Reel came back with an 1800SD (or one of it's siblings). Unfortunately of course, 50 years has not been kind to Akai Reel decks (or any electro-mechanical devices that are 20 years old or older). The internal lubes were never meant to last that long, certainly without maintenance, and 'rubber' doesn't 'age well' either, thus requiring the above stated work. There's also the Akai Transport cams that need to be inspected for their degree of condition and replaced if necessary (difficult and potentially expensive). We've already inspected them for any detrimental issues. Ready to go now. Will play & Record stereo 1/4" tapes on reels up to 7". This is one of the few reel to reel decks we get in that make it to our finished page. If you're looking for a reel to reel deck to "actually use" then here you go. Only about 25% of the used Reel decks out there can be "practically" restored to working order. This one made it through. Playback & transport functions test great and records well! 8-Track, built-in amp and speakers all work great as well. Looks and sounds great too!
Another note I'd like to make is that the 8-Track is probably the BEST I've ever auditioned (and we've done A LOT of 8-Track decks, and I used to sell them when NEW).

AKAI X-1800SD Features include:

- 4-Speed* Reel to Reel, 8-Track Cartridge deck w/ built-in speakers and amp
- DURABLE AC powered capstan motor (lasts decades longer than DC capstan motors of the 'later' models)
- Up to 7" reel capacity (while you could go down as far as 3" in diameter, the torque and braking on this deck has been optimized for 7"reels)
- Akai's "Cross-Field" Bias Head, gets the tape 'bias signal' off of the 'Record' head (so the 'Record Head' can be concentrated only on recording the 'music' signal) and biases with a separate head
- One-Micron Gap Recording Head (reel)
- Stereo or MONO playback / recording (reel tape) (means that in "MONO" mode, you can record 4 separate passes on a tape or playback tapes made on older decks that did 'four separate tracks')
- Quad speeds at 7.5 ips / 19cms (with included speed sleeve adapter), 3 3/4ips / 9.5 cms,1 7/8 ips / 4.8 cms & *15 ips / 38cms (requires optional 15ips kit, not available from us.
- As it's got its own, Built-in Power amp and speakers, it can be used as a 'stand alone' unit. (very handy for a media transfer business setting up another 'station' without a stereo / audio system)
- Stereo playback / recording 8-Track Cartridge tape
- Continuous Play or 'End of Tape' Stop for 8-Track (however at this point the 'Auto-Stop' does not seem to recognize the 'sensor' tape on 8-tracks so only does "Continuous Play" at the end of track #4)
- 8-Track 'Track Selector' w/ typical indicator lights
- Auto-Off for Reel deck
- Can also transfer from Reel tape to 8-Track Cartridge tape*
- Built-in 'Tape Cleaner' pad (can also lube 'back coated' tapes so they don't squeak if you can obtain the correct silicone lube. No, we don't know where to get it at this point...yet)
- Dual front mounted 1/4" Microphone inputs
- Side mounted 1/4" Headphone jack
- RCA and DIN I/O's
- Separate L&R Input / Volume controls
- Separate L&R Tone controls (for built-in amp)
- Internal Speaker On/Off switch (Auto switches when using 'External' speakers)

- NOT an OFFICIAL feature, BUT one function this deck will allow is a sort of CUE by slightly pushing up on the 'pause' lever, while the deck is in play, you can get a 'variable speed' CUE function. You'll either need to very gradually release the pressure or with your other hand move the 'Play' lever to 'Stop' when you reach the spot you wanted to 'cue to' or the tape will track off the front edge of the pinch roller. Takes a bit of practice to get it right.

(*15 ips ONLY w/ optional speed sleeve / pinch roller kit (not typically avail. The 15ips was utilized for transferring Reel tape signals to the 8-Track tape. While the Reel deck could record at 15ips, there's not a 15ips Tape EQ setting, which may or may not be detrimental to your needs)
-True "WORLD AC POWER"™ allows unit to be operated on 50 or 60 Hz AC and will select voltages from 110v, 120v, 220v and 240 volts AC input.

AKAI X-1800SD Specifications as follows:

Heads / Track system: Reel Heads; 4-track 2-channel / Stereo or 1-Channel / Mono heads for stereo or mono, Erase, Recording / Playback & Cross-Field Bias head
Heads / Track system: 8-Track Cartridge; 2-track 2-channel / Stereo  Erase, Recording / Playback
Motor: Two Speed, Induction Motor (drives Reel and Cartridge capstan)
Transport Control Type: Direct linked Mechanical
Maximum Reel capacity: 7" (5" and 3" as well) (brakes and motor torque optimized for 7" reels)
Tape speeds: 1 7/8 ips, 3.75 ips, 7-1/2 ips) and 15 ips w/ optional kit
Tape speed Deviation: ± 3.0% (ie: 1kHz may = 970Hz-1030Hz)
Fast Wind speed: ~120 secs for 1200 feet (7" reel)
Wow & Flutter: Reel; <0.18% RMS @ 7.5 ips
THD: Reel; <2% @ Line Level out
Frequency response: Reel; 30Hz to 23,000Hz (3dB @ 7-1/2 ips)
 &
30Hz to 18,000 Hz @ 3-3/4 ips
 &
30Hz to 9,000 Hz @ 1 7/8 ips
Cartridge; 50Hz to 15,000Hz (3dB @  3-3/4 ips
Signal to Noise Ratio: > 50dB on R2R and >45dB on Cartridge
Erase Ratio: Reel; >-70 for all tracks Cartridge; >-65dB
Crosstalk rejection: Reel; >-65dB in Mono and >-43dB in Stereo
Cartridge; >-50dB in Stereo
Input Level (Line): 60mV - 2.5V @ 150k Ohms
Input Level (Mic): 0.5mV - 20mV @ 30k Ohms
Output Level (Line): 1.228V (0VU) @ 250Hz from recorded tape signal
Bias Frequency: 60kHz
Built-In Power Amp Output: 12 W (6W/Ch) via discrete output transistors
Built-In Speakers: Dual 4", Full-Range

This is only the FIRST AKAI X-1800SD we restored in ~24 years. Great machine for playback / archiving your tapes to CD or Hard Drive or for recording new tapes. This is a beautiful deck. Performs incredibly well following extensive refurbishing. The wood case is in great 'structural' condition. It exhibits the typical and expected finish fading / checking / dings. The decks face, knobs, covers and all cosmetics are fabulous!

This machines 'Forte' would really be best suited for a 'media transfer' business, especially where you have a bench / station that doesn't have dedicated sound system (as it's go it's own, built-in amp and speakers) or for someone who has a lot of tapes to preview prior to sending for transfer, or for a library or university with a lot of tapes of different speeds / and track formats to transfer. If you're going to be listening to 'quiet, chamber' music while reading, the "AC powered" motor / fan noise could be distracting while 'casually' listening to quiet passages of music. If you tend to like the volume at more than 'low, back ground' levels, then you'll not likely notice "AC powered motor" hum (mechanical only and does not transfer into the 'signal' of the unit).

Measures 13.5" wide x 15" tall x 9.5" deep and weighs 38 lbs unpacked. Includes a set of 'fresh' spindle stoppers / reel clamps. Comes with a pdf 'e' copy of Akai X-1800SD owners manual and original brochure. Can include the AKAI X-1800SD Service Manual pdf 'e' download if you wish as well. Includes our standard 30 day limited warranty.
 (Reels & tape shown in photos not included. All are sometimes available separately depending on stock levels.)
 AKAI X-1800SD REEL TO REEL TAPE DECK
Cond. 8.5
SOLD 4/2/20
SHIPPING TO BOB IN FLORIDA

(Reels shown in photos are not included, but we sometimes / occasionally have them for sale. Inquire at time of order.
However, all of our decks will come with 2x tapes for testing 'Playback' and 'Recording' as well as a 7" 'take-up' reel, and RCA patch cables for connection to your system)

  (Above text property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

(archived)
