TEAC / TASCAM STEREO PARTS / SPARES
USED / TAKE-OUTS / SALVAGE PARTS

Teac / Tascam Stereo Parts & Parts Teac Reel to Reel / R2R / Reels, electronic parts for Tape Decks & parts. Tascam 234 4-Track Cassette Deck parts / spares, Teac X-1000, X-1000R, X-2000 X-7, X7R, X-700R / X700 / X700R parts, as well as A-1500-W, A-2300, A-2300S, A-6010, A-6010GSL, Teac R-1000 / R1000 & R-1100 / R1100 parts. Also Teac X7, X-7R, AR-60 Reel to Reel / R2R for sale. Teac 124 Syncassette Cassette deck Parts unit. TEAC / TASCAM parts for Data Base info, cross-reference and when available occasionally for sale.
Most (if not, "all") circuit boards populated with ORIGINAL JAPANESE parts / components, NOT Chinese copies / fakes / knock-offs!!!

20% off sale

on salvage audio & keyboard parts.

See sales banners on parts pages for details

LINKS TO OUR 'HI-FI' DEPARTMENTS

Amps and
Pre-Amps

EQs and Signal
Processors

THIS IS NOT THE SAME PAGE YOU JUST VIEWED. KEEP SCROLLING DOWN.

HERE ARE SOME ADDITIONAL RESOURCES FOR REPAIR / RESTORATION

MORE GEAR BEING ADDED AS IT BECOMES AVAILABLE

KEEP CHECKING!!!

>>> IF YOU DON'T SEE YOURS

WE DON'T HAVE IT YET <<<

*Note about parts / spares sales

* Our "parts units", parts / spares and related reference information are primarily archived for the purpose of restoration / repair of "Oak Tree Vintage" units first. Only if we do not have a "viable" unit in yet, either already in process or in line to be processed, that may potentially need parts from a "parts unit", will we release available parts for sale (even though they may appear as available for sale to the public). As many of you know, the restoration of a unit can be a long, time consuming process. We may "lock up" parts that we may potentially need in the restoration of a unit (and not necessarily get it marked 'Hold' or 'Sold' on the site right away). Parts are priced according to the "potential value" of the unit they can be applicable to (meaning the amount WE would be willing to pay for the part if that was all that was standing between us having a "shelved unit" or a valuable / sellable unit), time to extract, their rarity & their condition to name a few criteria and likely will be completely unrelated to the original cost / price of a part when it was currently available from the manufacturer.

Parts Photos; We get a number of requests for 'photos' of a specific part. Unfortunately, in most cases that is not practical as the amount of time involved in posting that exceeds the value of the 'unique' part. We will sometimes post photos of less 'unique' parts, if there is a greater chance of them being available in multiple quantities, or on a more 'repeat' basis.

Parts, general condition / circuit board condition; Most of our parts are from 'salvage / donor' units. While we don't sell parts that are 'known' to be bad, occasionally parts will need further adjustment, cleaning, 'tweaking', or in the case of circuit boards, may need old, conductive glue / epoxy further cleaned, and some 'common' parts / components such as, aging / leaky capacitors, parts whose values have drifted, and some epoxy transistors may need to be replaced due to 'green / black / furry' legs, or because those parts were marked as 'sold separately'. Some circuit boards may have 'tired' "landing / solder pads", or severed traces, or cold / bad solder joints which can require solder re-flow or 'jumpers'. Unless noted, circuit boards will be 'crack / split / break' free.

Parts pricing; Most of our parts price / value will be based on a few things. Firstly, we are in the restoration / refurb business, so we consider what we would be willing to pay for the part if we needed it (which again, is what the parts are listed for in the first place, "our units"). Secondly, the rarity / value of the unit the part(s) fit. The 'Tuning Knob' for a receiver that has a final value of $350 will likely be much less than the "Tuning Knob" for a unit with a final value of $1500 or more (a set of tires for a typical sedan will be $400 to $600. A set for a Lamborghini can be $16,000). Thirdly, the 'rarity' of the part. Forth, the 'condition' of the part. Fifth, the difficulty to extract the part, or success rate for extracting certain parts. Sixth; frankly it's a LOT of work and time to part out a unit. Most take 1 to 3 days of shop time to process. Not only the disassembly, but the 4-15 hours of pre-testing / servicing and just as time consuming can be the amount of time it takes to do all of the research we do and the info we list on many parts for cross-referrencing to other units that my use the same parts by scouring service manuals. On many circuit boards we will list every 'semi-conductor' which is also very time consuming. Lastly, every call or email for a part can require 20 minutes to sometimes over an hour of 'phone support', often (about 70% of the time) with me convincing the potential purchaser that they don't need the part I have to solve their problem.
Sorry to sound like a "whiner" about selling parts, but "time is money".

Shipping: Shipping on most 'small' parts if typically via Postal first class or Postal Priority for both domestic (USA) and international orders. Larger parts such as transformers and drivers (speakers) are typically via FedEx gnd.
Some parts sales such as those for empty 'speaker cabinets', empty 'component cabinets / covers / bonnets' and 'speaker grills' and most are 'doomed' from the start. Due to their size and required packing supplies, the cost of 'packing for safe transit' and shipping are commonly 'disproportionate' to their cost, typically nearly equal to and sometimes greater than the cost of the part. Think about it. An empty speaker cabinet or stereo receiver case is essentially the same size as a complete one. Yes the weight will be less, but most of items that size are calculated on 'dimensional weight', not actual weight so are commonly just as expensive as shipping a 'complete unit'. Secondly empty component cabinets have to be packed to disallow breakage, typically requiring nearly as much packing materials as an entire unit. Speaker grills have to be 'sandwiched' between foam sheets in large, custom ordered boxes (all relatively expensive). It is what it is....

A non-response to an email of phone call / voice message request for a part that we don't show on one or our pages, or is already marked "SOLD" will be typical. We simply don't have the time / man-power resources to respond to every query we get for items we don't show as avail. Most folks get that. Having said that, I / we may respond if we have information on a substitution or other useful information relating to it.

A non-response to an email of phone call / voice message request for a part (we may appear to have, but typically 'highlighted in Orange or Yellow'), likely means that we are still determining which parts we are going to need for the restoration or repair of one of our units. Again, the parts are first for the restoration of our units and secondarily for the public market. Since we list the parts available for ourselves, it is not much effort to modify the menu's for web publication, which in turn makes the reference information and occasionally the part available to the public. Frankly, publishing them to the web, in many instances, makes it easier for us to determine if we have the part for our needs as well. The alternative to all of the above would be to not offer them at all to the public, however most parts are available to the public for sale. Also, parts requests can occasionally take time for us to respond to. While we may have a part listed, and we like to keep the website 100% accurate, occasionally a part will be 'used by us' or 'previously sold' and we by oversight, and we did not get the web listing marked "SOLD", or the part gets 'mis-placed' or 'lost' (laid down somewhere in the warehouse(s) and then it get's lost track of (that happens to our coffee cups all the time, then we find it months later with 'a good batch of 'penicillin' growing in it), so we like to 'lay eyes on it' prior to responding. Sometimes we just can't figure out which cabinet or drawer parts were assigned to (and we're working on a system for that one).

Some folks email / call and want us to respond either way / whether we have the part or not. Again, we simply do not have the time resources to do that. Our time must be utilized on the requests we can fulfill.
Sorry for all the excuses, but that's how the 'system' (or lack thereof) works.
And, if you don't see it, we likely don't have it.
Thank you for your understanding.

$20. MINIMUM ORDER

(CLICK ON THUMBNAIL TO ENLARGE PHOTO)

MOST OF THE PARTS LISTED BELOW ARE FROM SALVAGE UNITS.


For NAB Hub page, CLICK HERE.....
(Click on above thumbnails to enlarge photos) TEAC / TASCAM REPLACEMENT AC POWER CORD / MAINS CABLE MODIFIED FOR REEL TO REEL DECKS BLACK COLOR Replacement AC power cord modified for many older Teac-Tascam Reel to Reels, tape decks, and probably many others. Here are just a few of the units this cable is modified to fit. Teac-Tascam models it's been modified to fit for sure; 33-4, 505R, A-1500, A-1500W, A-1230, A-1250, A-1250S, A-2050, A-2300S, A-2300SD, A-2300SR, A-2300SX, A-2340, A-2340SX, A-2520, A-3300S, 3300SR, A3300SX, A-3300SX, A-3340, A-4000S, A-4010, A-4010S, A4010SU, AR-40S, AR-60, A-6010, A-6010S, R-1000, R-1100 and likely other TEAC reel to reel decks. This AC power cord / mains cable will not fit the Bolex-Paillard 18-5 8mm film projector even though it appears similar. We just got in a few 'modified for TEAC' AC power cords back in after 3 years of being discontinued / unavailable. $38.50 including shipping to US states $49.50 for shipping to the rest of the planet. TO ORDER BY PHONE, PLEASE CALL US AT: (800) 806-4231 - Press Option '2' for 'SALES' to order - ~10:00 AM- ~5:30 PM most days COLORADO / ROCKY MOUNTAIN TIME ZONE Orders for this product taken by Phone vs via the "Buy Now" button will incur a $5.00 surcharge. (Above text, in it's entirety, including 'fit list' property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details)

PHOTOS OF OLD, DRIED UP, ORIGINAL REEL CLAMPS / HOLDERS / RETAINERS FRESH, NEW RUBBER REEL TO REEL TAPE DECK HUB / SPINDLE CLAMPS / REEL HOLDERS / HOLD DOWN KNOBS / REEL / SPOOL RETAINERS / SPINDLE CAPS / STOPPERS / RUBBER KNOBS (or whatever you wish to call them) For Open-reel tape decks. Designed to hold reels / spools on the spindles of decks that did not have built-in Reel locks. These will fit many models including Akai 1700, 1710, 1710L, 1710W, 1800L, 4000DS, M-5, M-7, M-8, X-100, X-345, X-355, X-360D, X-1800SD / Rheem / Roberts 192HT, 195HT, 330, 400, 440 / 440X, 450 / 450A, 455, 720A, 770X, 778X, 990, 1057, 1600, 1630-8L, 1640, 1719, 1720, 1725, 1725-8L, 1730, A-901, Rheem / Califone 3200A, and likely others, AMPEX 312 series, 601 series, 612 series, 800, 850, 900 series, 960, 1000, 1100 series, 1200 series, 1250, 1260, 1270, 1450, 1455, 2000, 2161, A-122, AG-500, AX series, �F� series, and others, Concertone, Crown, Dokorder 1122, 1140, 7140, 8010 �Dub-A-Tape�, 8140, 9050H, and possibly others, Hitachi TRQ-717, TRQ-730, JVC RD-1695, Kenwood KW-5066, KW-8077, Magnavox, Otari MX5050 series (due to the exceptional 'length' of the Otari MX5050 reel spindles, these fit particularly 'snug' which can be a good thing from a security standpoint, but requires more effort to attach and remove. They're what I use on my MX5050. They can be utilized with 7" reels, or to hold NAB hubs that do not 'clamp' on as well), Panasonic, Pioneer QT-74 / QT-6100 / QT-6600 / T-600 / T-6000 / T-6100, T-6600, T-8800 (and others), RCA VICTOR ORTHOPHONIC 7-TR-2, Rheem, Roberts, Sansui, SONY TC-105 / A, TC-155, TC-200, TC-250, TC-230, TC-250, TC-252, TC-252D, TC-255, TC-270, TC-277, TC-277-4, TC-352, TC-352D, TC-355, TC-500, TC-530, TC-600, TC-630, TC-770, tc-777 series, TC-800 series, TC-900 series, and likely others, HOWEVER, these Do not work well on following Sony models such as the Sony TC-366, TC-377, TC-377-4, TC-560 / 560D, and likely others. Those need the �Sony specific� reel holders. If your Sony has a �Philips� screw head in the center / tip of the reel spindle, then you need the ones that were made specifically for those Sony models and NOT these, Tandberg models, 3BF, 4BF, Model 6, 6X, Model 12, 12-41, 12-42, 15, 64, 65, 74, 74B, 741, 1600X, 6000X, 3000X. TEAC Model 70, A-1000, A-1200, A-1200U, A-1230, A-1250, A-1500, A-1500U, A-1500W, A-1600, A-1610, A-2010, A-2020, A-2040, A-2050, A-2500, A-2520, A-4000, A-4010 / RA-40, A-4010S, A-4010SL, A-4020, A-4070, A-6010, A-6010GSL, A-6010SL, A-6010U, A-7010, A-7010GSL, A-7010SL, A-7010U, R-1000, R-1100, and likely other TEAC models. and other reel-reel tape decks that have standard reel spindles. Easy and quick to take on and off. Old, originals are invariable going to be 'slick' and / or have enlarged holes that will not grip the spindle safely / sufficiently anymore. We know, as we have dozens of originals (a few of which are shown above), none of which work well enough to use / trust anymore. Our new / fresh ones are great to replace your old, dried out / cracked or lost ones. As these are individually, 'hand made' at our shop, they will have slight variances one from the other and from photos in 'cosmetics / finish'. They will not likely be 'perfect' cosmetically. If you're looking for "cosmetic perfection", then these won't likely be to your standards, however, they will FUNCTION "PERFECTLY" on most machines. These are new rubber and will grip well.* Orders for this product taken by Phone vs via the "Buy Now" button will incur a $5.00 surcharge. To Order Reel Clamps / Holders 'On Line', click here... * Still best to use Sony decks in horizontal mode unless you have the original Sony Rubber clamps as they are slightly different w/ a 'wire' clip imbedded inside rubber. These stoppers will work with Sony's when used in horizontal position or 'tilted back at an angle' and if you're 'attentive' while operating the deck, in the 'vertical' position as well. These are new rubber and will grip well. No, they're not simply the 'hardware store supply' stoppers. Those are NOT the correct rubber consistency to modify, the correct overall diameter, nor would the hole diameter be correct, nor 'run-out free'. If your Sony has a �Philips� screw head in the center / tip of the reel spindle, then you need the ones that were made specifically for those Sony models, then it's still best to use Sony decks in horizontal mode unless you have the original Sony Rubber clamps as they are slightly different w/ a 'wire' clip imbedded inside rubber. Again, the indicator that your deck needs these is a Philips screw in the center / tip of the spindle. These stoppers will work with Sony's when used in horizontal position and if you're 'attentive' while operating the deck, in the 'vertical' position as well. Unfortunately the 'original' reel stoppers are no longer available for any of the tape deck manufacturers. These are units that we make here at our shop. While functionally, they work perfectly, cosmetically they will not be 'perfect', nor a 'beautiful' as the originals were. They're what we ship with our restored decks as well The 'Additional' pair at the discounted price will be our 'cosmetic blems' and / or will have a bit more 'wobble / run-out', but again, will be functional.** (Above text, in it's entirety, including 'fit list' property of www.oaktreevintage.com / Oak Tree Enterprises, LLC. See 'Copyright Information' page for details) "Hi Jerry, The vintage-style hub clamps arrived yesterday and they are perfect! Thank you for doing them as they are exactly what I was hoping for. Great, fast service. Thank you. Have a great weekend. Best, Lee"

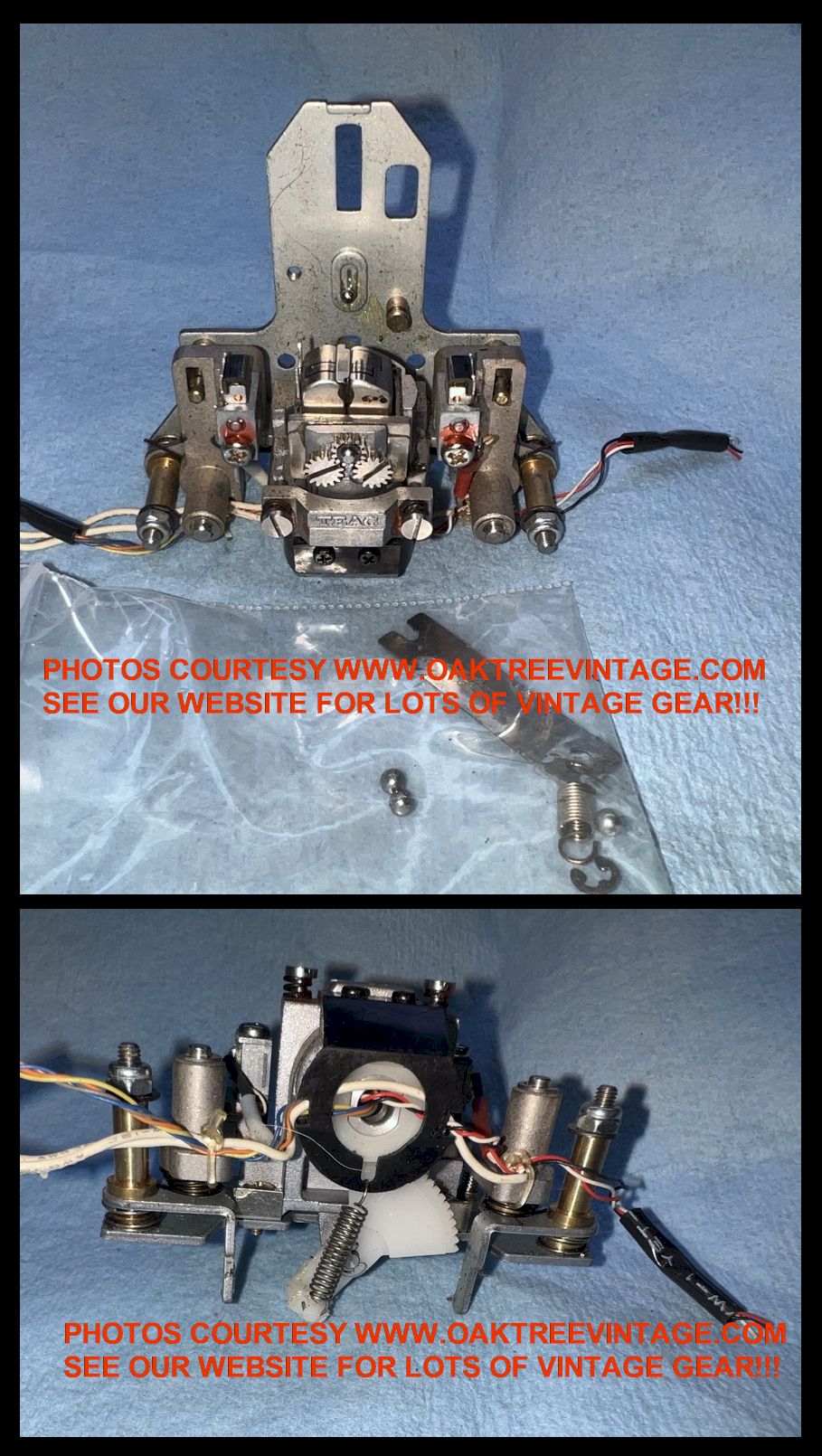

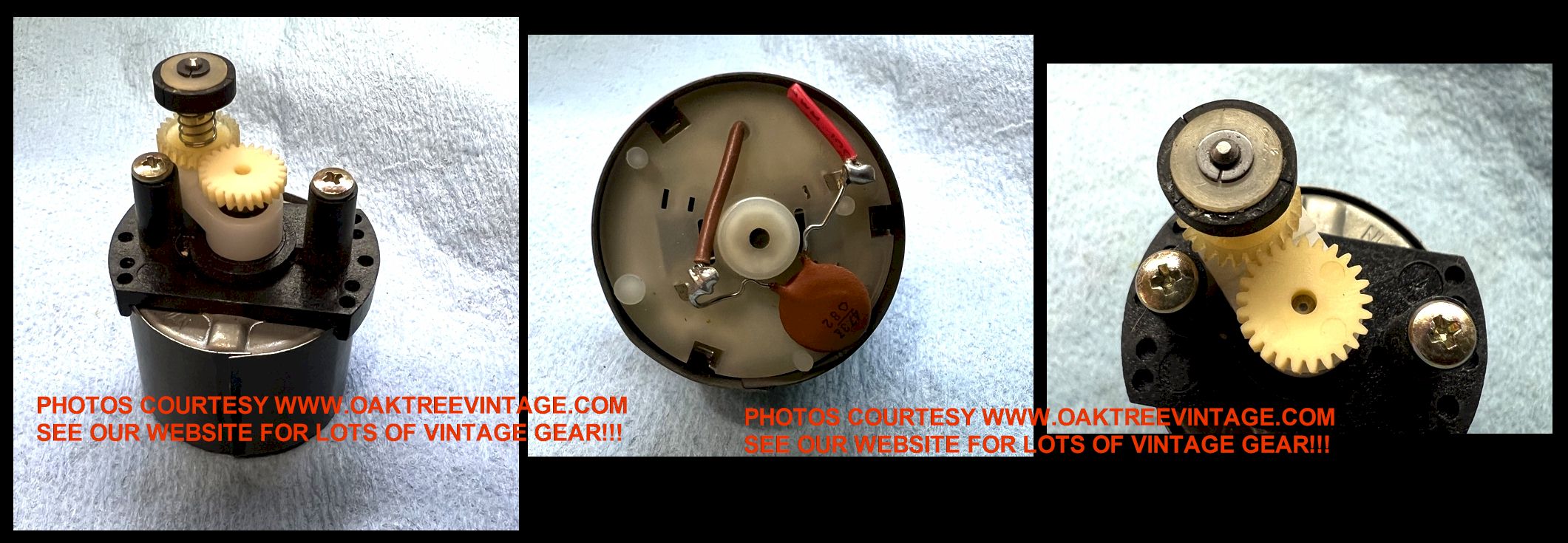

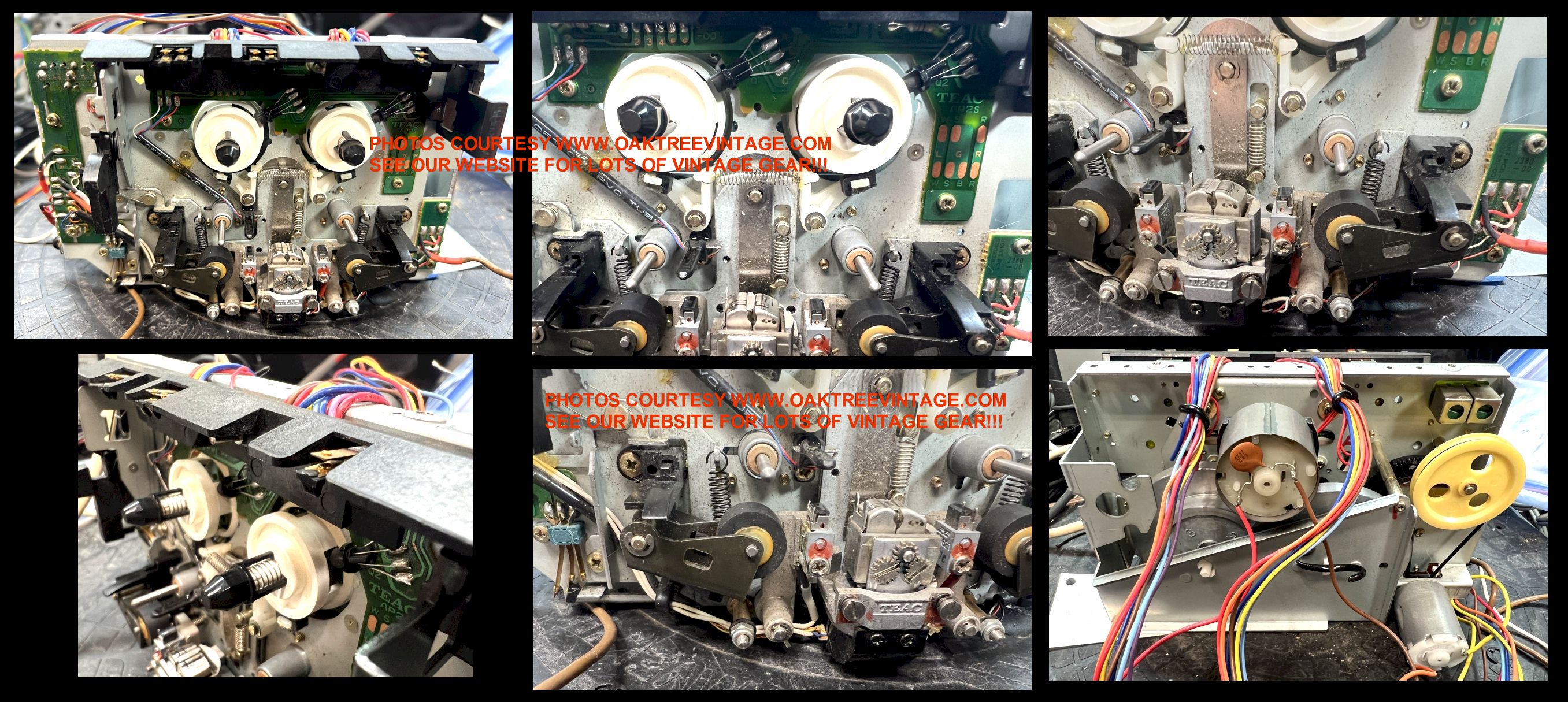

NEW LISTING 2/1/18 (Click on above thumbnails to enlarge photos) TASCAM 112R CASSETTE DECK PARTS / SPARES / DONOR UNIT #...0177 (There are a few other parts to this unit that will be added as they are located, and as time allows) - PARTING OUT - Panel, Top -Metal vent panel - $15. SOLD (Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately) Panel, Front / Face plate (NOT THE ONE IN THE ABOVE PHOTO. THE ONE WE HAVE FOR PARTS IS ROUGHER, and NO, for a $25 part, we're not going to take a separate photo of it. Sorry). Cosmetically VERY rough, especially around all the edges. Lots of scrapes / scuffs - $25. Rack Ears / Mounts, Front / Face plate. Cosmetically numerous scrapes / scuffs 'rack rash'. - $55. pair TASCAM 112R TAPE DECK PARTS / SPARES Knobs / Caps / Buttons / Covers, Power switch CAP. Orange. - $25. Knobs / Caps / Buttons / Covers, Pitch Control linear fader CAP - $25. Knobs / Caps / Buttons / Covers, Input level linear fader CAP / LEFT (thinner / skinny one / upper one ) - $25. Knobs / Caps / Buttons / Covers, Input level linear fader CAP / Right (thicker / lower one / offset one ) - $25. Knobs / Caps / Buttons / Covers, 'Reverse Mode' switch CAP - $20. Knobs / Caps / Buttons / Covers, 'Output' fader / pot CAP - $20. Potentiometer / Control, Output Level Input linear 20kAX2 pot / fader R43 - $35. Potentiometer / Control, R101 or R201 'Input Level' Control Linear 50k Ohms potentiometer Input / Output Level Input pot - $45. ea. Potentiometer / Control, R42 'Pitch Control' Linear 1k Ohms potentiometer Input / Output Level Input pot - $35. Potentiometer / Control, 'Tape Speed' PC mounted / micro pot R41 - $35. Switches / Selectors, 'Noise Reduction' switch for Dolby B or C selection- $35. Switches / Selectors, 'Reverse Mode' 'latched / push' switch - $35. Motor, Main capstan Drive motor MABUCHI EG-530KD-2F / 12VDC / 1600 / 3200 RPM - $55. Motor, Reel Drive motor MABUCHI RF-510-T - $55. Motor, Head Rotator / Auto-Reverse motor MABUCHI - $55. Transport mechanism, (less heads, Supply and Take-Up reel assemblies, pinch arms / rollers & motors) - $65. (some other parts may be available individually) Reel Assembly, Take-Up / TU OR Supply Reel Assembly (appear to be interchangeable) - $45. ea. Heads, PB/ REC Head / Head-Stack / Headstack assembly on 'rotating' mechanism - $65. (Excellent) Heads, Erase Head / Head-Stack / Headstack - $40. ea. (Excellent) Pinch Rollers / Arms, Arm assembly w/ rubber pinch rollers. (Left and right appear to be interchangeable) - $35. ea. TASCAM 112R TAPE DECK PARTS / SPARES Transformer, Power transformer 5320037401 - $65. Counter, Tape Counter PCB TEAC PCB-52101837-00 with digital LED readout - $45. Circuit Boards, 'MAIN' circuit board TEAC Main PCB-521001827-00 (power supply, noise reduction, playback / record amplifiers, etc) (less I/O RCA JACK assembly, and PC mounted rotary pots as they are sold separately), IC chips; Hitachi HD14066BP, Mitsubishi 5220, M5218AL, M51143AL, Sony / Dolby CX20187, and transistors / Regulators; 1346, 3400, 2SC1740, 2SD1302, L78N06, 78010AP, AN78N07, AN79N07 and any others on that board, adjustable transformer coils, and balance of resistors, Diodes, Capacitors, heatsink, connectors, 100kHz bias. - $65. Circuit Boards, Remote Port circuit board TEAC PCB-52101907-00 with 16 Pin connector and balance of resistors, Capacitors, Connectors. - $35. Circuit Boards, Control circuit board TEAC PCB-52101836-00 with, IC chips; TEAC 5220805400, TEAC 5220805300, Toshiba TC4069UBP, LB1475, LC7800, LA6358, NEC 4011BC / 9026TN, Mitsubishi M54517P, and transistors 2SA933, 2SC1740, 2SD734, 1346, 3400, 800kHz, and balance of resistors, Diodes, Capacitors, Connectors. - $65. Circuit Boards, 'Front panel' 'Switch' circuit board TEAC SW PCB-521001942-00 (behind face plate) (less linear pots / faders, 'Tape Speed' PC mounted rotary pot, and less 'Auto / Monitor' switch), but with 'Meter LED's, and momentary push switches, IC chips; Sharp IR2E201, Mitsubishi M54561P, and transistors 2SB698, and balance of resistors, Diodes, Capacitors, LED's. - $65. Jacks / Terminals / Connectors, RCA Input / Output section - $35. Panel, Rear sheet metal panel / plate - $30. Call or Email for "SHOWN and NOT marked 'SOLD' " part you need. (There are a few other parts to this unit that will be added as they are located, and as time allows) Location: PB, South, Black HON, Center/Right, Drawer #2, right half. - Revised 3/18/19	TASCAM 122MKIII & 238 and Tascam CASSETTE TAPE DECK PARTS / SPARES SOME PARTS MAY BE INTERCHANGEABLE WITH OTHER TEAC CASSETTE DECK SERIES, BUT YOU'LL NEED TO DO YOUR OWN RESEARCH REFERENCE INFORMATION ONLY!!!! NO parts available from a 'Teac CX-650R' currently Motor, Capstan Motor, #53700075 - Reference information ONLY. See other units on this page for possible stock status.	TASCAM 234 4-TRACK CASSETTE TAPE DECK PARTS / SPARES PARTS MENU COMING SOON!
(Click on above thumbnails to enlarge photos) TEAC 124 CASSETTE DECK "SYNCASET" CASSETTE DECK - PARTING OUT - We completely went through the deck replacing / reconditioning all rubber and cleaning all switches and then found, after spending about 4 hours on it, that it records very low and distorted on both channels. This was Teac's first "Sound-on-Sound" capable cassette deck. Motors run great and heads appear to be in good shape. Problem unknown at this point. Cosmetic Cond. 8.5 Complete AS-IS $49. SOLD COMPLETE 11/4/08
NEW LISTING 11/7/06 (Click on above thumbnails to enlarge photos) TEAC TEAC A-1500-W / A1500 / A1500W PARTS / SPARES AUTO-REVERSE Reel-Reel Deck PARTS Parting out. Runs well, but heads are worn. Call or email for part needed. *Some parts MAY also fit the Teac A-1000, A-1200, A-1200U, A-1500, A-1600 & possibly others of that series / vintage. for sale Main, Upper Face Plate. New condition. No dings, scuffs or gouges (with right tape tension roller / counter sensor assembly intact) (does not include any mounting "hex" bolts) - $125. Lower, Face Plate. New condition. No dings, scuffs or gouges (does not include any mounting "hex" bolts) - $65. Main Motor** 70-116 / EM-281 - $45. Capstan Flywheel w/ bearing / bushing - $35. Hub spindles / Brake drums (Reel Base with spindle tips) - $35 ea. Back tension resistors - $20 ea. Any internal Solenoid 61621 / RL-613, - $20. ea. 2 available Counter - $25. ea. TEAC A-1500-W / A1500 / A1500W PARTS / SPARES Heads / Head-Stack / Headstack (worn) - $25. all. Misc Internal circuit boards - $45. ea (unless individually priced elsewhere in this menu (less pots, jacks, switches, large transformers, outputs) - Transport Selector buttons & switches - $35. complete Record Selector switch assembly - $35. Pinch / Pressure Roller - SOLD Power switch - $20. Record / Playback VU meters - $35 for pair Output / Line Input / Mic input pots - $30 ea Concentric knob sets - $25 pair. Mic Jacks - $15. ea TEAC A-1500-W / A1500 / A1500W PARTS / SPARES Power Transformer 56139 - $40. Voltage selector - $25. Hub Tension brakes / brake bands - $20. ea. Jacks / Connectors, Microphone Jacks - $20. ea. Jacks / Connectors, Headphone Jack - $20. RCA Input / Output Panel / section - $20. Fuse cap $20. SOLD (see R1000) Any Single Spring (valued at time to extract.) Usually $20-$35 ea. Other parts not listed quoted individually based mostly on part value and time required to extract. Phone or email for availability. Call or Email for "SHOWN and NOT marked 'SOLD' " part you need. Location: PB, Southern Island, North Shore, East end, 4th cab (Western most, black), 3rd drawer, Right side - Revised 7/7/20	(Click on above thumbnails to enlarge photos) TEAC A-2300S REEL TO REEL PARTS / SPARES Many parts may also fit the TEAC A-3300S and possibly TEAC A-4300S for sale Parting out. Tape transport (play) relay only clicks and will not start play. Call or email for part you need. Parting out. Panel / Plate / Cover, Upper Face Plate / Panel #55521280 - CLEAN - $45. Screws / Bolts, Screws / fasteners for Side Panel / Face / etc. - HOLD FOR SHOP USE Cover / Panel, Head Cover with Teac logo - $30. Side Panel / Board, Wood side panel - Left or Right #55430060 - STOCK STATUS ??? Knobs / Buttons / Caps, Tape Transport switch caps - $20. ea. Knobs / Buttons / Caps, Mic / Line / Output knobs Upper; #50253750 & Lower; 55040591 - $35. / concentric pair Knobs / Buttons / Caps, Round switch caps (when removable) - $20. ea. Switches / Selectors / Controls, Push switches $25. ea. Switches / Selectors / Controls, Micro Switches V-1A44, V-1A10, V-1A etc. - $20 ea. Switches / Selectors / Controls, Power / Speed switches - $25. ea. Potentiometers / Controls, Mic / Output / Line / Playback Pots /Jacks (concentric pairs. Output / Line are 100k x2. Mic is 10K x2) - $30. ea. (SOLD OUT OF OUTPUT AND LINE POTS. STILL HAVE MIC POT IN STOCK.) TEAC A-2300S REEL TO REEL PARTS / SPARES Meters, Level / VU Meters with lens #51650280 - $30. ea. Roller, Rubber Pinch roller / pressure roller #50141751 (good used) - $65. Spindles, Hub Base / spindles with screws (Reel Base) #50161941 - $65. ea. Heads, Heads / Head-Stack / Headstack assembly with Erase Head; #55663090, Record Head; #55692020, Playback Head; #55692020 (minor wear, with plenty of miles left) - $95. for all on mounting plate. SOLD Motor, Capstan Main Motor EM282 / #50701341 - $65. Pulley, Capstan Motor Belt Pulley 50Hz &/or 60Hz #50124003 - $35. Belt, Capstan Motor Belt #50123830 - NOT AVAILABLE THROUGH US Fan, Capstan Motor cooling fan blades, clear plastic #50123984 - BROKEN Motor, Hub / reel motor EM1472 / #71041043 (fits TEAC A-2300S and A-2340R and maybe others) (not including brake drums which are sold separately) - $65. 1 left in stock. Flywheel, Capstan Main Flywheel #50123802 - $35. Counter, Tape counter / Index mechanism #50585140 - $35. Belt, Tape Counter / Index Counter Belt #50332560 - NOT AVAILABLE THROUGH US Tension Arms, Tape Tension Arm Assemblies #50180432 - $35. ea. Take-Up side SOLD Tape Lifter Arms, Tape Lifter Assemblies 50150242 & 50150252 with bushings / flange washers - $35. both sides Brakes / Brake Bands, Supply Side Tape Tension brake bands #50173661 (may need new felt / suede leather for best performance) - $35. ea. Brakes / Brake Bands, Take-Up Side Tape Tension brake bands #55043100 (may need new felt / suede leather for best performance) - $35. ea. Brake Drum, #50173561 - $30. ea. TEAC A-2300S REEL TO REEL PARTS / SPARES Transformer, Power Transformer #51521420 - $55. Capacitors, Filter Caps Two (3.9 + 0.9uF ,250WV.AC) - $20. ea. Relays, Relays (MY4 0US-24DC four In stock, LC1 two in stock) - $25. ea. Resistors, Back tension Wire Wound Resistors with clamping connectors - $20. ea. Solenoids, Internal Solenoid (RL-1604, RL1603) - $30. ea. Circuit Boards, Internal circuit boards - $55. ea. (less pots, switches, large transformers, outputs) The following boards are sold; 50484071, 50484080, 50484090 Plugs / Connectors, 11 pin Dummy Plug for Remote jack $50433011 - MIA Jacks / Connectors, Microphone Jacks #50430240 - $20. ea. SOLD Jacks / Connectors, Headphone Jack #50432450 - $20. SOLD Panel / Plate, Back Panel - $25. SOLD (Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately) Feet, Skids / Feet / Legs #50277980 - SOLD Call or Email for "SHOWN and NOT marked 'SOLD' " part you need. - Location: PB, West, Grn cab, 4th drawer, (below Spkr Wire) - Revised 3/18/19	PHOTOS COMING (Click on above thumbnails to enlarge photos) TEAC A-2340R REEL TO REEL PARTS / SPARES data for reference / cross-reference only. None currently for sale. HEADS / HEADSTACK, Head, Erase Head, PN 50664110 - Reference info ONLY. Not currently available for sale. HEADS / HEADSTACK, Head, RECORD Head, PN 50664410 - Reference info ONLY. Not currently available for sale. HEADS / HEADSTACK, Head, PLAYBACK Head, PN 50664420 - Reference info ONLY. Not currently available for sale. MOTOR, Motor, Capstan Motor / Main Drive Motor, PN EM-282 - Reference info ONLY. Not currently available for sale. MOTOR, Motor, Reel Drive Motor, PN EM-1472 - Reference info ONLY. Not currently available for sale. TRANSFORMER, Transformer, Main Power Transformer, PN TR1010 - Reference info ONLY. Not currently available for sale.
	TEAC A-2340R REEL TO REEL PARTS / SPARES FOR REFERENCE ONLY Head, Erase Head #50664110 - Reference information ONLY. See other units on this page for possible stock status. Head, Playback Head #50664420 - Reference information ONLY. See other units on this page for possible stock status. Head, Record Head #50664410 - Reference information ONLY. See other units on this page for possible stock status. Capstan Motor, (EM282) - Reference information ONLY. See other units on this page for possible stock status. Reel Motors, Hub / reel motor (EM1472) (fits TEAC A-2300S and A-2340R and maybe others) - Reference information ONLY. See other units on this page for possible stock status. Transformer, Power Transformer #TR1010 - Reference information ONLY. See other units on this page for possible stock status.

(Click on above thumbnails to enlarge photos) TEAC A-4010S A 4010 S A4010SU Reel-Reel Deck PARTS CLICK HERE FOR PARTS MENU...
(Click on above thumbnails to enlarge photos) (PHOTOS OF OTHERS COMING SOON) NEW LISTING 10/23/2024 VINTAGE TEAC RC-601 "REMOTE CONTROL" UNIT, RC-602 "REPEAT CONTROL UNIT" and RC-604 "PAUSE UNIT" FOR TEAC 6010 AND 7010 SERIES REEL TO REEL TAPE DECKS for sale Set of 3 TEAC wired remote controls. The RC-601 "Remote Control' functions for Forward and Reverse Playback, FF and REW and Stop via 11-Pin plug at the end of a 15' cable. The "Repeat Unit" turn's a TEAC A-6010 / A-6010SL / A-6010GSL, A-7010 / A-7010SL / A-7010GSL, A-7030GSL (and possibly others) from just a "U-Turn" Auto-Reverse capable deck into a 'Continuous Play Auto-Reverse' / 'U-Turn' deck (ie; A-B-A-B-A...). With integrated 6' cable terminated in 11-Pin plug. The TEAC RC-604 "Pause Unit" does just what it states via 15' cable terminated in a 6-Pin DIN plug. $174. for the set of 3 remote controls
	(Click on above thumbnails to enlarge photos) TEAC A-6010-6010SL / AR-60 Reel-Reel Deck PARTS / SPARES Some parts will / may fit TEAC A-4010SL, A-6010SL, A-7010SL & A-7030SL for sale Parting out. Tape transport works great! AR-60 Pre-Amp also works, but has a strong 60 cycle AC buzz when unit is powered up and in Tape Monitor position. TEAC A-6010S A6010 A-6010 / AR-60 PARTS / SPARES Case / Bonnet, Walnut Veneer Case (Looks good, but has a few extra holes in the side edges) - $35. (Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately) Face Plate / Panel, Upper main - CLEAN - $65. Front cover - $60. SOLD Face Plate / Panel, Teac A-6010 Lower Face panel with transport button cutouts. Great cond. - $30. Panel / Plate, Masonnite Back Panel with metal fan vent - $25. (Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately) Knobs / Caps / Buttons / Covers, switch caps (when removable) - $8. ea. Knobs / Caps / Buttons / Covers, Power or Record knob - $20. ea. Knobs / Caps / Buttons / Covers, Mic / Line / Output knobs (concentric pairs) - $25. / concentric pair Switch / Selector, Push switches - $35. ea. Potentiometer / Control, Mic / Line / Output Pots - $30 ea. Pinch roller, Rubber (good used) - $45. MIA? or SOLD? Counter, Tape counter mechanism - $35. Meters, VU Meter / Volume Meter, TEAC 50581142 - $35. ea. SOLD TEAC A-6010S A6010 A-6010 / AR-60 PARTS / SPARES Motor, Capstan / main Motor 70-114 090787 / 50701170 - $75. Motor, Hub / reel motor right (port) 50702201 - $65. SOLD Motor, Hub / reel motor left (starboard) 50702201 - $65. SOLD Spindles, Hub spindles with screws (Reel Base with spindle) - SOLD Tape Tension Arm Assemblies - $35. ea. Brakes, Tape Tension brakes - $35. pr. TEAC A-6010S A6010 A-6010 / AR-60 PARTS / SPARES Cover / Panel, Head Cover with Teac 'A-6010' logo - $35. SOLD Heads / Head-Stack / Headstack, Heads / Head-Stack / Headstack assembly (perfect) - $115 for all on the mounting plate. - SOLD Circuit Boards, Control Unit circuit board #48071-1 (601) with 5x Relays #61040 (K1, K2, K5), 61041 / K4 & 61039 / K6 (61039 / K3 ALREADY SOLD FROM BOARD) (service manual erroneously lists one of the 120V relays as "12V") with balance of capacitors, resistors, diodes - $85. Circuit Boards, Internal circuit board #48050-1 (512) with Relay #61043 (513) - $45. - SOLD Relay, Relays while available separately - $35. ea. Relay 61039 / K3 - SOLD Resistors, Back tension Wire Wound Resistors with clamping connectors - $25. ea. Solenoid, Any internal Solenoid #50616403 Brake Solenoid or #50616393 Capstan Solenoid / RL-11C-6 - $35. ea. TEAC A-6010S A6010 A-6010 / AR-60 PARTS / SPARES *Transformer, Power Transformer, TEAC 56150 (taps: One side Blue/Blue. Opposite side: Red/Orange/Gray/White/Purple/Brown/Yellow)* - $45. Multi-voltage selector / fuse holder (with insert cap) - $35. Multi-voltage selector / fuse holder (insert cap only) - $25. SOLD Panel Mount 8 or 11 pin connectors / Jacks- $30. ea. 11 pin Dummy Plugs for Remote / Repeat jacks - $35. ea. ALL MULT-PIN TEAC REMOTE / DUMMY PLUGS CURRENTLY ON HOLD FOR SHOP USE. 8 or 11 pin jumper cables with connectors - $75. ea. ALL MULT-PIN TEAC CABLES / CONNECTORS CURRENTLY ON HOLD FOR SHOP USE. AC Cord - SOLD Call or Email for "SHOWN and NOT marked 'SOLD' " part you need.** Location: PB, West, Middle-Tan cab, 3rd drawer (W/ Technics SA-5170) - Revised 3/18/19	(Click on above thumbnails to enlarge photos) TEAC A-6010GSL Reel-Reel PARTS / SPARES for sale and / or reference (parts are from 'salvage / donor' units) Some parts will / may fit TEAC A-4010GSL, A-6010GSL, A-7010GSL & A-7030GSL These are the only parts we have for this unit at this time. Case / Cabinet / Bonnet, Walnut Veneer Case - $55. SOLD (Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately) Panel, Masonite Back Panel - $35. (Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately) Panel, Top Vent / Panel - $35. Panel, Face Panel / Plate, Upper / Main Transport panel, Stainless Steel - $75. SOLD Panel, Face Panel / Plate, Lower Transport panel, Brushed Aluminum - $55. SOLD Panel, Face Panel / Plate, Black, Play / Rec amp - $55. Panel, Rear Panel / Back Plate, Black, Play / Rec amp - $45. TEAC A-6010GSL PARTS / SPARES Knobs / Caps / Buttons / Covers, Round switch caps (when removable) such as 'Tape Speed', �Tape Thickness�, �Auto-Reverse� buttons - $20. Ea. Knobs / Caps / Buttons / Covers, Rectangular �Transport� switch caps; �Fast� or �Direction� buttons #50252271 (see TEAC A-6010GSL & A-7010GSL) - $30. Ea. Knobs / Caps / Buttons / Covers, Round, �Mic�, �Line� or �Output� knobs (concentric pair) #50252331 / #50252261 (Fits TEAC A-6010GSL, A-7010GSL) - $35. Ea. concentric pair Switch, Power Push switch assembly w/ pilot lamp / bulb holder (button / cap sold separately) - $55. NEED PHOTO AS THERES TWO VERSIONS Switch, Push switch �Monitor Tape / Source� #50443630 (button / cap sold separately) (Fits TEAC A-6010GSL, A-7010GSL) - $40. Switch, Record Push switch assembly w/ lamp / bulb holder #50443410n (see TEAC A-6010GSL & A-7010GSL) (button / cap sold separately) - $55. Switch, Toggle / Lever Switch; �Mode�, �EQ/Level� or �Bias� #50937590 (does NOT fit A-7010GSL) - $45. Ea. Selector, Tape Transport selector / �Mode Control� assembly (w/ �Stop� button / cap, micro switches for 'Stop', 'Fast Wind' & 'Play') (Play & �Fast� buttons sold separately) - $45. Selector, Tape Transport selector / �Mode Control� buttons / caps for �Play Left�, �Play Right� or �Fast Wind� (Fits TEAC A-6010GSL, A-7010GSL) - $25. Ea. Potentiometer / Control, �Mic� or �Output� Pot #50537090 (knob / button / cap sold separately) (Fits TEAC A-6010GSL, A-7010GSL) - $45. Ea. Potentiometer / Control, �Line� Pot #50537100 (knob / button / cap sold separately) (Fits TEAC A-6010GSL, A-7010GSL) - $45. Potentiometer / Control, �Rec Level / Bias� Pot (PC mounted �screw driver� adjustment pots on rear panel of Play / Rec amp) sold as an assembly on their circuit board. See listing below. HEADS Heads, Play / Playback Head / Head-Stack / Head Block assembly with all 4 heads; Playback Head: #50667300 (Ferrite) No visible wear (see TEAC A-4010GSL, A-6010GSL) Record Head: #50667200 (Ferrite) No visible wear (see TEAC A-4010GSL, A-6010GSL) Erase Head: #50663030 Slight visible wear (see TEAC A-2300S, A-3300S, A-4010GSL, A-6010GSL) For complete �plug-in� assembly of ALL heads, plates, mounting etc. Ready to plug-in. - $275. Cover, Head Cover with Teac 'A-6010GSL' logo � Excellent, near new cond. - $55. Reel Table, Hub Reel Tables / Spindles / Platform / Base, Table 50161524 w/ black rubber pad / mat 50162771, (nylon screws not included, nor available, but you can use metal screws) - $65. ea. Meters, �Rec Level / VU meters� #50581390 (Fits TEAC A-4010GSL, A-6010GSL, A-7010GSL) - $55. ea. Counter, Index counter / Tape Index counter mechanism #50277420 - $40. w/ brackets and pulley as an assembly TEAC A-6010GSL PARTS / SPARES Pinch Roller, Rubber Pinch roller assembly (NOS, but due to age, still will be reconditioned / cleaned prior to shipment) 50140260 - $75. 2 IN STOCK (This pinch roller, TEAC 50140260, also fits; TEAC A-1200, A-1300, A-1500, A-2020, A-2050, A-4000, A-4010S, A-4010SL, A-4010GSL, A-4020, A-4070, A-4070G, A-6010, A-6010SL, A-6010GSL, A-7010, A-7010SL, A-7010GSL, A-7030, A-7030SL, A-7030GSL, A-7030MK4, A-7040, & TCA-40) Dimensions: ~39-40mm diameter, ~14-15mm thickness of rubber, ~17mm shaft protrusion from rear of roller, 6mm shaft diameter, ~36.5mm overall distance from hub cap to rear of shaft. Arm, Pinch Roller Arm w/ axle / post #50141594 (cleaned and re-lubed prior to shipment) (Fits TEAC A-6010GSL, A-7010GSL) - $45. SOLD Arm, Left Tape Tension Arm Assemblies #50183021 (the one on the 'supply' side) (Fits TEAC A-6010GSL, A-7010GSL) - $45. Ea. SOLD Arm, Automatic Shut-Off �Right� Lever / Arm #50182941 (the one on the 'take-up' side) (Fits TEAC A-6010GSL, A-7010GSL) - $35. Ea. SOLD Roller, Impedance Roller #50126231 (good bearing) (Fits TEAC A-6010GSL, A-7010GSL) - $35. SOLD Motor, Capstan Main Motor #50701170 (Fits TEAC A-6010GSL, A-7010GSL) - $85. SOLD Motor, Reel Motor #50702201 - $65. Ea. SOLD Pulley, Capstan Belt Pulley #50120360 - $35. SOLD Flywheel / capstan, Capstan / Flywheel #50120360 assembly - $40. SOLD Brake Bands, Tape Tension brakes #50172233 - $30. each side (bands & felts only) SOLD OUT TEAC A-6010GSL PARTS / SPARES Transformer, Power Transformer #50561880 - $65. SOLD Circuit Boards, Record Relay Assembly circuit board #50481990 with Type K6 relay and 4x �Push Switches�; �Tape Speed�, �Tape Thickness�, �Auto-Reverse�, �Signal / Record� (less black switch caps, sold separately) (Fits TEAC A-6010GSL, A-7010GSL) - $45. Circuit Boards, Control Relay Assembly circuit board #50489331 (less relays, sold separately) (Fits TEAC A-6010GSL, A-7010GSL) - $45. SOLD Circuit Board, �Spark Killer� circuit board 50482860 (less relay, sold separately) - $45. Circuit Board, �Record / Playback� circuit board #50489311 (less, potentiometers, switches, relay, sold separately) (Fits TEAC A-6010GSL, A-7010GSL, A-7030GSL) - ~~$85.~~ $40. (needs work on one channel as it intermittently lowers and distorts playback, and records about 6-9dB down) Circuit Board, �Bias / Rec Level� Circuit board assembly with all pc mounted �Micro� pots # #50489320 (Fits TEAC A-6010GSL, A-7010GSL) - $65. Complete Circuit Board, �Bias Oscillator Circuit board assembly with all pc mounted #50489300 (Fits TEAC A-6010GSL, A-7010GSL) - $35. complete Circuit Board, �Phase Sensing Amplifier� Circuit board assembly, #50491040 (Fits TEAC A-6010GSL, A-7010GSL) - $75. SOLD Connector, 18-Pin Playback Amplifier Circuit board edge connector / card connector TEAC 50438130 / MITSUMI / CINCH 477M - $45. Solenoid, Capstan Solenoid #50616393 (Fits TEAC A-6010GSL, A-7010GSL) - $35. SOLD Solenoid, Brake Solenoid #50616570 (Fits TEAC A-6010GSL, A-7010GSL) - $35. SOLD Relay, #50610770 OMRON TYPE MY4 10Y1 / 11Y1 / 29X1, 100 Volt / 1100 Ohms (from �Control Relay Circuit Board� and �Spark Killer Circuit Board�) - $25. ea. A FEW IN STOCK Relay, OMRON TYPE MH2ZP 11Y1 / DC Z 12 Volt / 1100 Ohms (from �Control Relay Circuit Board�) - $35. ea. SOLD 1/5/2023 Relay, Head Relay, #50611090 OMRON TYPE MH2P DC 12 Volt / 430 Ohms (located behind �rear panel�) (Fits TEAC A-6010GSL, A-7010GSL) - $35. ea. TEAC A-6010GSL PARTS / SPARES Jacks, Panel Mount 11 pin connectors #50432350 (Fits TEAC A-6010GSL, A-7010GSL) - $30. Ea. Plug, 11-pin Dummy / NULL Plug for �Remote� or �Repeat� jack 50432520 (Fits TEAC A-4010GSL, A-6010GSL, A-7010GSL) - $45. Ea. - ON HOLD FOR SHOP USE Plug, 6-pin DIN Dummy / NULL Plug for �Pause� jack 50430260 (Fits TEAC A-6010GSL, A-7010GSL) - $35. Ea. - ON HOLD FOR SHOP USE Connector / cables, 8-pin Male, jumper cable with connector for �Erase / Record Head� #50475590 (Fits TEAC A-6010GSL, A-7010GSL) - $45. Ea. Connector / cables, 8-pin Female jumper cable with connector for �To Amp� #50476800 (Fits TEAC A-6010GSL, A-7010GSL) - $45. Ea. Fuse holder / Selector, #50412142 jack with selector plug (world / multi-voltage style) (cap sold separately) (Fits TEAC A-6010GSL, A-7010GSL) - $35. Fuse Cap / insert - $35. Jack, �Mic� input jack, #50430240 (Fits TEAC A-6010GSL, A-7010GSL) - $30. Ea. Jack, �Phone� (headphones) output jack, #50432450 (Fits TEAC A-6010GSL, A-7010GSL) - $30. Ea. Jack, AC input jack, 2-Spade male, Recessed, 50432950 (Fits TEAC A-6010GSL, A-7010GSL) - $35. Jack, RCA �Line Input�, �Line Output� or �Head� jacks, #50434631 - $35. Ea. pair Panel / Plate, Top Sheet metal panel / plate on Play / Record amplifier unit / module - $30. Panel / Plate, Lower / Bottom Sheet metal panel / plate on Play / Record amplifier unit / module - $30. Cord, AC cord / cable replacement - CLICK HERE ... Call or Email for "SHOWN and NOT marked 'SOLD' " part you need. Location: PB, West, Southern-most / Black, First cab, 5th drawer - Revised 1/6/2023

TEAC CX-650R CASSETTE TAPE DECK PARTS / SPARES SOME PARTS MAY BE INTERCHANGEABLE WITH OTHER TEAC CASSETTE DECK SERIES, BUT YOU'LL NEED TO DO YOUR OWN RESEARCH REFERENCE INFORMATION ONLY!!!! NO parts available from a 'Teac CX-650R' currently Motor, Capstan Motor, #71051340 - Reference information ONLY. See other units on this page for possible stock status. Motor, Reel Motor, #71051350 - Reference information ONLY. See other units on this page for possible stock status. Head, Erase Head, #5378600400 - Reference information ONLY. See other units on this page for possible stock status. Head, Play-back / Record Head, #5378900100 - Reference information ONLY. See other units on this page for possible stock status.	PHOTOS COMING (Click on above thumbnails to enlarge photos) TEAC D-500C CASSETTE DECK PARTS / SPARES / DONOR UNIT - PARTING OUT - Parted out due to overall cosmetic issues. PARTS HIGHLIGHTED IN ORANGE STILL IN PROCESS Bonnet / Case, Metal bonnet / cover / case - $25. SOLD (Cases, covers and side plate / panels, etc. do not include mounting screws as those are sold separately) Panel, Front / Face plate (missing LED meter level window for left well - $35. Panel / Cover, Cassette Well door / cover for "PLAY I" (left side) - $35. Panel / Cover, Cassette Well door / cover for "REC/PLAY II" (right side) - $35. Knobs / Caps / Buttons / Covers, Power switch CAP. Orange. - $25. Knobs / Caps / Buttons / Covers, Pitch Control linear fader CAP - $25. Knobs / Caps / Buttons / Covers, Input level linear fader CAP / LEFT (thinner / skinny one / upper one ) - $25. Knobs / Caps / Buttons / Covers, Input level linear fader CAP / Right (thicker / lower one / offset one ) - $25. Knobs / Caps / Buttons / Covers, 'Reverse Mode' switch CAP - $20. Knobs / Caps / Buttons / Covers, 'Output' fader / pot CAP - $20. Potentiometer / Control, Output Level Input linear 20k X2 pot / fader - $35. SOLD Potentiometer / Control, 'Input Level' Control Linear 50k Ohms potentiometer Input / Output Level Input pot - $35. ea. Motor, LED Meter Level circuit board w/ LEDs - $35. Potentiometer / Control, R42 'Pitch Control' Linear 1k Ohms potentiometer Input / Output Level Input pot - $35. Potentiometer / Control, 'Tape Speed' PC mounted / micro pot R41 - $35. Switches / Selectors, 'Noise Reduction' switch for Dolby B or C selection, "High-Speed" & "Tape Types" (Normal, CrO2 and Metal). All on circuit board. - $35. for complete section of switches Switches / Selectors, 'Reverse Mode' (latched / push switches) mounted on circuit board w/ ribbon cable & connector - $35. Switches / Selectors, "Power" & "Continuous Play" 'latched / push' switch - $35. Motor, Main Drive motor SANKYO BFB2L89-50516-B - $35. ea. Transport mechanism, (less heads, Supply and Take-Up reel assemblies, pinch arms / rollers & motors) - $45. (some other parts may be available individually) Reel Assembly, Take-Up / TU OR Supply Reel Assembly (appear to be interchangeable) - $45. ea. Heads, PB/ REC Head / Head-Stack / Headstack assembly on 'rotating' mechanism - $65. (Excellent) Heads, Erase Head / Head-Stack / Headstack - $40. ea. (Excellent) Pinch Rollers / Arms, Arm assembly w/ rubber pinch rollers. (Left and right appear to be interchangeable) - $35. ea. TEAC D-500C CASSETTE TAPE DECK PARTS / SPARES Transformer, Power transformer 9125039000 / 22F018HN / 5G25T Tamradio. Shielded w/ shielding in place - $35. Counter, Tape Counter - $35. Circuit Boards, 'GATHER A / MAIN' circuit board / R/P AMP TEAC Main PCB-9155024000 / 9155024100 (with power supply, noise reduction, bias section, playback / record amplifiers, etc) with IC chips; M5231L, NEC4557C, SANYO LB1214, LC4069LB, LC4069UB, LC4081B, Sharp IR2E27A, Sony / Dolby 5E04 / 20187, In-Line packages; LA2000, LA3161, Matsushita M5218L, and transistors; 2SA608, 2SC536, 2SK583, 2SC1815, and any others on that board, adjustable transformer coils, Bridge Rectifier; +BA20, and balance of resistors, Diodes, Capacitors, connectors, bias coils and with voltage regulator circuit board containing regulators; L78N12 & B632. - $55. Circuit Boards, 'GATHER B / MAIN' circuit board / CONTROL AMP TEAC Main PCB-9155026000 / 9155026100 with IC chips; NEC 7520C, NSC MM74C14N, SANYO LC4011B, LC4027B, LC4066B, LC4081B, and transistors; 2SA608, 2SC536, 2SD438, 2SD734, and any others on that board, adjustable trim pots, balance of Diodes, Capacitors, & Resistors, connectors. - $45. Circuit Boards, Remote Port circuit board TEAC PCB-52101907-00 with 16 Pin connector and balance of resistors, Capacitors, Connectors. - $35. Circuit Boards, Control circuit board TEAC PCB-52101836-00 with, IC chips; TEAC 5220805400, TEAC 5220805300, Toshiba TC4069UBP, LB1475, LC7800, LA6358, NEC 4011BC / 9026TN, Mitsubishi M54517P, and transistors 2SA933, 2SC1740, 2SD734, 1346, 3400, 800kHz, and balance of resistors, Diodes, Capacitors, Connectors. - $65. Circuit Boards, 'Front panel' 'Switch' circuit board TEAC SW PCB-521001942-00 (behind face plate) (less linear pots / faders, 'Tape Speed' PC mounted rotary pot, and less 'Auto / Monitor' switch), but with 'Meter LED's, and momentary push switches, IC chips; Sharp IR2E201, Mitsubishi M54561P, and transistors 2SB698, and balance of resistors, Diodes, Capacitors, LED's. - $65. Jacks / Terminals / Connectors, RCA Input / Output section - $35. Panel, Rear sheet metal panel / plate - $30. Call or Email for "SHOWN and NOT marked 'SOLD' " part you need. (There are a few other parts to this unit that will be added as they are located, and as time allows) Location: PB, South, Black HON, Center/Right, Drawer #2, right half. - Revised 3/18/19
	NEW LISTING 11/7/06 (Click on above thumbnails to enlarge photos) TEAC R-1000 / R1000 Reel-Reel Deck PARTS *Some parts MAY also fit the Teac A-1000, A-1200, A-1200U, A-1500, A-1600, R-1100 & possibly others of that series / vintage. PARTING OUT Deck runs, but was not practical to restore. Teac R-1000 / R1000 parts / spares Main, Upper Face Plate. New condition. No dings, scuffs or gouges (with right tape tension roller / counter sensor assembly intact) (does not include any mounting "hex" bolts) - $125. SOLD Lower, Face Plate. New condition. No dings, scuffs or gouges (does not include any mounting "hex" bolts) - $65. Case Lid Excellent condition - $35. Knobs / Caps / Buttons / Covers, Concentric knob sets for Mic or Line Level #25201 & #25131 - $30. pair. Switches / Selectors, Power switch #44106 - $35. Potentiometer / Control, Output / Line Input / Mic input pots / controls #53706 - $40. ea. Switches / Selectors, Transport Selector buttons #25108 (black buttons) & #25109 (Red Button) on switches #44315 - $45. complete Switches / Selectors, Record Selector switch assembly #T44302 - $35. Meters / Indicators, Record / Playback / Volume Indicator VU meters #48108 - $40. for pair Teac R-1000 / R1000 parts / spares Motor, Capstan / Main Motor** 70-111 - $45. Capstan Flywheel w/ bearing / bushing - $35. Motor, Hub / reel / Fast Wind Fast Forward / Rewind motor motors right Part # 70-209 - $45. ea. Motor, Hub spindles / Brake drums (Brake Drum with Reel Base / Table with spindle tips) #81 & #82 in service manual, PT#16132 & #17185 - $35. ea. Bands, Brake Bands #17191 w/ felts (felts may need to be re-glued) - $35. ea. Pinch / Pressure / Rubber Roller, Pinch Roller #14009 - SOLD Back tension resistors - $20. ea. Solenoid, Any internal Solenoid #61606, #61614 or #61617 - $35. ea. Counter - $25. ea. Teac R-1000 / R1000 parts / spares Heads / Head-Stack / Headstack (great condition with minor wear) Playback; #66901, Record; #66601 or Erase; #66303 - $55. ea. or $85.00 for all #13013 mounted on head chassis. Cover / Plate, Head Cover - $30. Circuit Boards, Misc Internal circuit boards - $45. ea. (unless individually priced elsewhere in this menu (less pots, jacks, switches, large transformers, outputs) Oscillator, Oscillator #56306 on metal plate - $30. SOLD Mic Jacks - $15. ea. Teac R-1000 / R1000 parts / spares Transformer, Power Transformer 56118 - $40. SOLD Capacitor, Main, Power / Filter Capacitor "Nippon Chemi-Con" 20+20MFD / 350WV - (Used and probably 'past it's prime', but if you need it...) - $25. Hub Tension brakes / brake bands - $20. ea. Jack / Connector, Headphone jack - $15. Jack / Connector, RCA Input / Output Panel / section - $20. Fuse cap $20. Any Single Spring (valued at time to extract.) Usually $20-$35. ea. Call or Email for "SHOWN and NOT marked 'SOLD' " part you need. Location: PB, East wall, Tan, 'thin drawer' cab, 5th Drawer - Revised 8/16/2022	NEW LISTING 1/21/15 TEAC W-990RX / W990RX CASSETTE TAPE DECK / RECORDER SALVAGE / PARTS / SPARES Bonnet / Cover, Sheet metal, black, light scratches / scuffs (attachment screws sold separately) - $30. SOLD Panel, �Front / Face panel�, �Black Anodized / brushed aluminum� finish, light scratches with clear plastic cover for �CD Check�, �Tape Counter 1 / 2�, �Reset�, �Memo Check�, �Intro Check�, �Blank Check�, �Sync Scan�, Record� levels, record level scales, auto reverse, timer, tape directional control buttons / caps, record, pause buttons / caps (less transport, controls, meters, switches, bay doors sold separately) -$45. anel / Door, Cassette �Bay / Well Window� Deck 1 or Deck 2 (less transport)- $25.ea. Remote Control, Teac W-990RX Remote Control - SOLD TEAC W-990RX / W990RX CASSETTE TAPE DECK / RECORDER PARTS / SPARES Knobs / Caps / Buttons / Covers, �Power� cap (switch, switch extension sold separately) - $20. Knob / Cap / Button, �Power switch extension� plastic (less power switch, cap) - $20. Knobs / Caps / Buttons / Covers, �Record level� caps / knobs (linear fader pots sold separately) - $15. ea. Knobs / Caps / Buttons / Covers, �NR / Noise Reduction� knob / cap, black plastic (less control / switch, circuit board) - $15. Knobs / Caps / Buttons / Covers, �CD CHECK�, �COUNTER�, �MEMO CHECK�, �SCAN�, �SYNC�, �DUB START�, �REC MUTE� push caps, black or Orange plastic (less control / switch, circuit board) - $8. ea. Knobs / Caps / Buttons / Covers, �Timer�, �Auto Reverse�, caps / buttons (switch / selectors sold separately) - $15. ea. Knobs / Caps / Buttons / Covers, �Eject� button / cap with spring - $20. ea. Switches / Selectors, �Timer� Record / Off / Play (extension, button / cap sold separately) - $30. Switches / Selectors, �Auto-Reverse Mode� switch (extension, button / cap sold separately) - $30. Switch / Selectors, �Power� locking push switch SDL1P-A 4A / 32a250 on circuit board TEAC #52102237-00 w/ clamping capacitor (less button / cap, extension sold separately) - $30. Switches / Selectors, �Voltage� adjustment switch / selector 110 / 127 / 220 / 240 volts on circuit board TEAC #52102238-00 (less transformer) - $30. Selector / Switches, �NR System� switch �Dolby B�, �Dolby C�, �dbx� on circuit board TEAC #52102235-00 (less cap / button / knob sold separately) - $30. TEAC W-990RX / W990RX CASSETTE TAPE DECK / RECORDER PARTS / SPARES Circuit Board, �Main� Circuit Board, TEAC #52102226-00 with transistor: 2S603, 2SA124, 2SA144, 2SB143, 2SB1065, 2SC124, 2SC1741, 2SC2060, 2SD1450, 2SD1506, 2SJ40, L78MR05, Horizontal package RS223, M5230L, Mitsubishi M4049UBP, Mitsubishi 5218L, Mitsubishi M51143AL, IC BA6251, BA6993, BU4001B, BU4053B, ,BU4066B, BU4081B, LB1649, Mitsubishi M4049UBP, Mitsubishi 5220, Mitsubishi 54519P, NEC D7519HCW, NEC 7507SCT, C with other board mounted resistors, capacitors, diodes (less capacitors, jacks / connector) - $95. Circuit board, �Noise Reduction�, � NR PCB� circuit board TEAC #52102230-00 with transistors: 2SC124, 2S115, 2S603, IC�s; dbx AN6291, Sony 8T27 Dolby chip, horizontal package Mitsubishi M5218L, SKE332 transformer, 9280 transformer, 6200 transformer and balance of board mounted capacitors, resistors - $45. Circuit Board, �Control� / �Meter� PCB #5210223-00 with �Play�. �Stop�, �Rewind�, �Pause�, � Record�, momentary switches, �Record Level� linear fader pots, �Timer�, �Auto Reverse� slide switches, �CD Check�, �Counter 1 / 2�,� Reset�,� PGM�, �Memo Check�,� Intro Check�. �Blank Scan�,� Sync Rev�, � Dub Start High / Normal�, �Rec Mute� push switches (less switches, pots / faders and switch caps / knobs) - $45. Semsor, Remote control Sony BX-1407 �sensor� on circuit board TEAC # 52102236-00 (less remote control sold separately) - $30. Transformer, �Power� transformer, TEAC EX 5320044800 TAM 8H242 adjustable voltage with circuit board TEAC #52102239-00, and circuit board TEAC # 52102228-00 / CMX-140X(less voltage selector sold separately) $45. Heads / Head-stack, �Record / Playback head E1 (less transport, bay doors) - $35. (has cracked nylon auto-reverse gear. Heads in great shape) Door, �Deck-1� Door w/ spring and and damper / shock (window sold separately) - $35. Door, �Deck-2� Door w/ spring and and damper / shock (window sold separately) - $35. Motor, Capstan Motor MMA06B2LWFK 12VDC / #5761690400 - $35. ea. (1 remaining in stock) Motor, Fast Wind Motor #5761744100, On circuit board - $35. ea. Motor, Head Rotation Motor #5761688700 - $35. ea. Transport, 57617408-01 left bay (less bay door, heads and motors) - $40. Transport, 57617409-01 right bay (less bay door, heads and motors) - $40. TEAC W-990RX / W990RX CASSETTE TAPE DECK / RECORDER PARTS / SPARES Jack / Connector, RCA Input / Output connectors / jacks 2 pair on panel (separate from PCB) - $ 25. Jack / Connector, Headphones �� output jack - $ 25. Panel, �Rear�, sheet metal (less connectors. jacks / outlets) - $20. Panel, �Bottom� sheet metal � SOLD Socket / Jack, �Phones� � inch jack on circuit board TEAC Jack PCB # 52102234-00(sold separately) - $25. Feet, set of 4 - $30. or $15. ea. Call or Email for "SHOWN and NOT marked 'SOLD' " part you need. Location: PB, East, Inside Island, Simplicity, Drawer 1, Middle. - REVISED 9/18/19
(Click on above thumbnails to enlarge photos) TEAC X-7R / X7 / X7R Reel-Reel Deck PARTS for sale Some parts may also fit the Teac X-7 & X-7mkII Mark II, X-1000R, X-1000, X-700, X-700R CLICK HERE FOR PARTS SPECIFIC TO THE X-7R	(click on above thumbnails to enlarge photos) TEAC X-10R / X10R Parts / Spares The 'Tension Arm Roller assembly" is currently all we have for this unit. For other parts, possibly check the other decks we have listed for a substitution. Case, Wood Case / Housing assembly Teac #5502278000. Wood grain, vinyl wrapped w/ correct mounting bolts. VERY clean and structurally sound. No issues. Great shape. (Should also fit Teac X-10R, X-1000R & X-2000R and possibly others) - $149. SOLD Roller assembly, Teac X-10R Tape Tension Arm idler wheels / Rollers / bearings / axle; #5504718100 & cap; #5545009000 combined (version; 'apron' is separate from axle and bearing is affixed to apron on this style) (complete assembly as shown in photo) (see also Teac X-7, X-7R, X-10R, X-20R, 32-2B) - NEW $75. ea. SOLD OUT (small TEAC Card File Drawer) Hub Cap, Tape Tension Arm Cap / Hub Cap for Teac X-7, X-7R, X-10R, X-20R, 32-2B and maybe others. Cap; #5545009000 - $35. ea. Used, Cap only (small Teac Card File Drawer) NOW SOLD OUT (small TEAC Card File Drawer)	(Click on above thumbnails to enlarge photos) NEW LISTING 2/17/15 TEAC X-700R / X700R Reel-Reel Tape Deck Parts / Spares Some parts MAY* also fit the Teac X-10R, X-20R-EE, X-700R, X-700R-EE, X-1000R possibly others. PARTING OUT Bonnet / Cover / Housing, Wood grain back cover / housing (excellent condition. No breaks, cracks or chips and not including mounting screws) - ??? Panel / Plate,�Face� Plate. Anodized aluminum, black. very good condition. No dings, scuffs or gouges (less controls, knobs / buttons, meters, pots, switches and mounting "hex" / Allen bolts, head cover�All sold separately) - $125. Screws / Bolts / Fasteners, Face plate / cover mounting hex / Allen bolts / screws. Black finish - $12. ea. Panel / Cover, �Head cover� plastic, small dings, but nothing too distracting (less hex bolts, face plate, transport, heads) - $40. Screws / Bolts / Fasteners, Head Cover hex bolts / cap screw #5800285000 (Fits Teac X-700R, X-1000R and possibly others) - $18. ea. Panel / Trim / Bezel, �Head housing base / back bezel / trim� #5800261900. Charcoal plastic (Fits Teac X-10R, X-700R and possibly others) - $30. Knobs / Caps / Buttons / Covers, �Power� w/ nylon extension - $35. ea. Knobs / Caps / Buttons / Covers, �Pitch Control� knob / cap - $25. Knobs / Caps / Buttons / Covers, �Speed�, �Record mode�, �Monitor� push switch caps, Black Plastic, Rectangular (less switch, extension ) - $18. ea. Knobs / Caps / Buttons / Covers, �Tape�, �dBx� push switch caps, with �Cotter / Clevis� pins / clips (less switch, extensions sold separately) - $20. ea. Knobs / Caps / Buttons / Covers, �Auto Reverse� button / cap - SOLD Knobs / Caps / Buttons / Covers, �Mic�, �Line�, �Output� 2 piece knobs Charcoal / Black (front and back) #5800262800 & #5800262900 (Fits Teac X-700R, X-1000R and possibly others) - $35. / pair TEAC X-700R / X700R Reel-Reel Tape Deck Parts / Spares Display / Lamp, �DBX� indicator lamp, green, mounted on TEAC #PCB-52101296-01 - $25. w/ working, but used bulb / lamp Display / Counter, Tape �counter� with manual reset #5504724000 (Fits Teac X-10R, X-700R and possibly others) - $35. Potentiometer, �Mic�, �Line�, �Output� pots / controls 15A 50K Ohms X2 EX - $35. ea. Potentiometer / Control, �Pitch� control pot / switch, Alps 145E 5KB on circuit board #51679380 - $35. Switch / Selector, �Power� push switch �JP20� / 125V 10A AC 250V 5A with clamping capacitor 0.01 � 300AC (less extension, button / cap sold separately) - $35. Switch / Selector, �Power� push switch �extension rod� (less switch, pin / clip, button / cap sold separately) - $20. Switch / Selector, �Transport control� momentary push switches �Fast reverse�, �Reverse�, �Stop�, �Forward�, �Fast forward�, �Pause�, �Rec mute�, �Record� switches, buttons / caps mounted on �Operation SW� circuit board PCB-101, TEAC 51679290 with red and green lamps (function not guaranteed) wiring harness with plug complete - $65. Switch / Selector, �Auto Reverse� 3 position, �rotary� switch on circuit board #TEAC 51679280 / SW PCB-128 (less cap / knob / button sold separately) - $30. Switch / Selector, �DBX� Push switch (from �record / play circuit board�) - $35. Extension, �Monitor� OR �Record mode� push switch extension rod with clip / pin (less switch, button / cap sold separately) - $25. Switch / Selector, �Timer� locking push switches (2) on TEAC #PCB-103 / 51679260 and board mounted resistors - $35. Extension, Timer� push switch extension rod with clip / pin (less arm, switch, button / cap sold separately) - $25. Extension, Timer� push switch extension rod with clip / pin, arm and weight (less switch, button / cap sold separately) - $25. Switch / Selector, �Speed� control locking push switch on circuit board TEAC#5157001001 (less button / cap sold separately) - $30. Switch / Selector, �Rec mode�, �Monitor� locking push switch (less circuit board, extensions, caps / buttons sold separately) (from �record / play circuit board�) - $30. ea. Extension, �Record� push switch extension rod with pin / clip (less switch, button / cap sold separately) - $25. Switch / Selector, �Tape Type� / �EE-NORM� locking push switch - $35. Switch, Micro / �reed� switch, Omron SS-5GL13-F 5A125VAC3A250Aac #with capacitor - $18. ea. TEAC X-700R / X700R Reel-Reel Tape Deck Parts / Spares Heads, Play Head / Head-Stack / Headstack (perfect) 4-Track / 2-Channel #5378300700 (also fits Teac X-20R-EE and X-700R-EE) - $65. ea. Great cond. Heads, Record Head / Head-Stack / Headstack (perfect) 4-Track / 2-Channel #5378300600 (also fits Teac X-20R-EE and X-700R-EE) - $65. ea. Great cond. Heads, Erase Head / Head-Stack / Headstack (perfect) 4-Track / 2-Channel #5378300800 - $65. ea. Great cond. Meters, Analog VU level / Signal meters. Black version is a #5296005100 VU-40, and has 'black' backing graphics plate (#5296004900 / VU-1 SILVER VERSION with 'silver' backing graphics plate) (see also X-700, X-700R and X-1000 / X-1000R) (less front bezel / face plate sold separately) - $45. Black / 5100 version Meter Window, Plastic meter �lens / cover�. Minor scuffing - $30. Meters, VU Meter �bezel / trim�, brushed, black anodized aluminum (less meter sold separately) - $25. *Motor, Capstan / Main Motor EM1446 / 5018003* / 24V / 7W** (see also; Will / may work on either Pioneer RT-909 or Pioneer RT-901 (we have information that the Teac EM1446 Capstan Motor / 'X-series' motor is the same, but may need it's polarity reversed when connected. See also; TEAC / Tascam 35-2B, Tascam 44, TEAC 3440, Most TEAC X SERIES, X-10R, X-20R, 700, 7R, 7MKII, X-1000, X-2000 and maybe others. Just FYI.) - $249. SOLD Pulley, Drive Pulley / Main Capstan Belt Drive Pulley (aluminum w/ two set screws) (20.70mm at surface 'crown', 25.6mm height, 4mm center hole) (may also fit TEAC / Tascam 3440, & Most TEAC X SERIES, X-10R, X-20R, X-700, X-7R, X-7MKII, X-1000R, X-2000R) - $30. SOLD Motor, Hub / reel / Fast Wind Fast Forward / Rewind motor motors Part # EM1448 (see also Teac-X-7R) - $95. ea. Reel Table, Hub spindles #5504744000 (Reel Table Base assembly with spindle tips) (Reel Table assembly with spindle tips) (117mm in diameter / ~28mm center to center on the screw / bolt holes) (See Also; Teac X-7, X-7R, X-700 / X-700R, X-10R, X-1000 also fit the Teac X-2000. They are the same part both for fit and cosmetics) May also fit other models. - $125. ea. SOLD TEAC X-700R / X700R Reel-Reel Tape Deck Parts / Spares Pinch Roller, Rubber Pinch roller left or right #5014175100 (fits TEAC A-2300, X-700R) (good used, less screw and hubcap) (31mm diameter x 12mm wide with center bushing hole 5mm) - $55. ea. Pinch Roller, Pinch Roller Cap / Cover #5545014000 (fits TEAC X-10R, X-700R) (roller sold separately) - $35. ea. Rollers / Wheels, Tape Tension Arm idler wheels / Rollers (See also Teac X-700R and Teac X-1000, BUT NOT X-7 OR X-10R). (Caps shown below are the same) - $35. ea. Rollers / Wheels, Tape Tension Arm idler wheels / Rollers (these rollers will not fit Teac X-1000, but the caps shown below will) - $45. ea OR Cap, Tape Tension Arm Cap / Hub Cap (See also TEAC X-7, X-7R, X-700, X-1000, X-1000R) - $40. ea Cap only SORRY, THIS VERSION IS CURRENTLY MIA (meaning we can't find the 'bag' full of them) OR Tape Tension Arm rollers assembly #5800532200 ('apron' is affixed to the axle and bearing separates from apron on this style) (fits also X-1000R) - $75. ea. SOLD OUT complete axle, roller, shims and cap We DO NOT currently have any of the style of bearing assembly where the 'apron' and 'bearing' are separate. However, we have installed the X-10R style (on this page above) (Tape Tension Arm idler wheels / Rollers / bearings / axle; #5504718100 & cap; #5545009000) on an 'X-700R' / 'X-1000R' w/ no issues. Tension Arm mechanism, Shut-off base assembly / Tape tension arm mechanism, Supply / feed side part #5504719102, Take-up side part # 5504720101 'the 'metal' parts behind the face plate' (less idler wheels, rollers and caps) - $35. ea. Roller, Larger roller assembly �A� for supply side #5800314203 - $55. w/ hub cap Roller, Larger roller assembly �B� for �Take-Up� side #5504741004 - $55. w/ hub cap TEAC X-700R / X700R Reel-Reel Tape Deck Parts / Spares Solenoid, RL-1657 / 5163041001- $40. Solenoid, RL-1658 / 51630420 - $40. Solenoid, �Record� solenoid #RL-1659 / 51630436 / 84-11 - $40. Solenoid, RL-1660 / 51630450 - $40. Solenoid, RL-1661 / 51630440 - $40. ea. Brakes, Hub �Base / Reel Table� �Brake drum� / back hubs #5800346200 (brake bands, mechanisms, reel base / spindle tips sold separately) - $30. ea. Brakes, Hub Tension / �brake bands� with mounting bracket Left =#5504735000 or Right =#5504736000. Felt �Brake Shoe� intact and good - $30. ea. Flywheel, Capstan Flywheel Right #5504727000 or Left #5504728000 (see Teac X-10R & X-700R) - $35. ea Adjustors / Bolts, Adjustor screws / bolts / nuts for Capstan Flywheels - $20. ea set Mechanism, Tape transport mechanism assembly / chassis includes chassis / frame & pinch roller arm mechanisms (less heads, head mounting plate, flywheels, thrust plate) - $55. TEAC X-700R / X700R Reel-Reel Tape Deck Parts / Spares Circuit Boards, �DBX� Encoder / Decoder Circuit Board TEAC DBX PCB-52101297-01 with transistor: 2SA733, 2SC945, DBX chips 146732, 146742, NEC 4558C and other board mounted capacitors, diodes and resistors - $65. Circuit Board, �Speed / Pitch Control / Capstan Servo PCB� Circuit #51678860 w/ M8416 / LN2903N or LN2903P chip, Transistors; 2SA1015, 2SC162, D880 regulator and balance of capacitors, diodes, resistors, and pc mounted trim pots (see also maybe TEAC 40-4 {when equipped with optional speed / pitch control kit} TEAC X-7, X-7R, X-700, X-700R, X-1000, X-1000R, X-2000R, Tascam 32-B, as well as Pioneer RT-901 / RT-909 and likely many other TEAC / Tascams) - $65. SOLD Circuit Boards, �Control� Circuit Board PCB-116 with transistors: 2SA07, 2SA999, 2SB507, 2SC1815, 2SC2274, 2SC1061, 2SD313, Voltage Regulator; 78M05, IC�s; Hitachi HD7400P, HD7402P, JRC 2901N, AN6251 and Bridge Rectifier M4C51, Omron relays G2U 113P0 O9409, Micron 2W / 1.5Ohm K, 2W / 3.3Ohm K / 5W / 3.3Ohm K resistors and balance of board mounted capacitors, diodes and resistors and heatsink - $65. Circuit Boards, Record / Play Amplifier Circuit Board PCB-52101295-00 with transistors: 2SA1015, 2SC945, 2SC2320,2SD655, IC'S Mitsubishi 5218, Tl4558P, Linear Record Switches (x3), TEAC Oscillator #50400900 / 100khz, �filter capacitors� and other board mounted capacitors, diodes and resistors (Less push switches, pots, relays) - $95. Circuit Board, �Lamp supply� circuit board #52101316-01 (less lamps) - $20. Relay, Omron relay LAB2L 12 VDC (from �record / play circuit board�) - $25. Relay, Omron �relay� G2v-282P 24vdc (less circuit board) - $25. Relay, Omron �relay� G2U / 113P / 09409 (located on power supply / control circuit board) - $25. ea. Transformer, �World AC / Multi-Voltage� Power transformer TEAC# 5320006600 (capable of (100, 120, 220, 240V) (less voltage selector switch sold separately) - $95. Selector / Switch, Voltage Selector / Switch (100, 120, 220, 240V) - $35. TEAC X-700R / X700R Reel-Reel Tape Deck Parts / Spares Jacks / Connector, �Headphone� jack / connector #5124046000 (less circuit board sold separately) - $25. Jacks / Connector, �Microphone� jack / connector, #5124045000 right and left (less circuit board sold separately) - $25.ea. Jacks / Connector, �Remote control� circuit board PCB-109 / TEAC #51679310 with wiring harness, plug / socket (less remote control) - $30. Jacks / Connectors, RCA �Input / Output� on Teac circuit board #5167937101, 4 mounted on `panel / section (less rear sheet metal panel) - $30. Panel, �Rear� black sheet metal panel (less jacks / connectors, remote control socket / plug sold separately) - $25. Feet / Skids, �Feet� black plastic #5533190000, 7 7/8" overall length. Hole centers ~ 4" (fits Teac X-10R, X-700R and possibly others) - $35. ea. with bolts / screws Springs, Any Single Spring (valued at time to extract.) Usually $20-$35. ea. Other parts not listed quoted individually based mostly on part value and time required to extract. Call or Email for "SHOWN and NOT marked 'SOLD' " part you need. For NAB Hub adaptors, click HERE! Location: PB, West, Southern-most / Black, First cab, 4th drawer - Revised 4/23/19
(Click on above thumbnails to enlarge photos) TEAC X-1000 X1000 X1000R Reel-Reel Deck PARTS CLICK HERE FOR PARTS MENU...	TEAC reel to reel deck - 11-pin jumper cable with connectors for Record Amp / Tape Deck - $75. ea. ALL MULT-PIN TEAC CABLES / CONNECTORS CURRENTLY ON HOLD FOR SHOP USE. TEAC reel to reel deck - 11 pin Dummy Plugs for Remote / Repeat jacks - $35. ea. Only a few available. ALL MULT-PIN TEAC CABLES / CONNECTORS CURRENTLY ON HOLD FOR SHOP USE.	-
		(Click on above thumbnails to enlarge photos) TEAC EQA-20 EQA20 USED / PARTS UNIT SOLD Great looking Stereo / Dual 10 band graphic controls featuring de-tented linear pots with +- 12 dB throw. Dual built-in tape monitors with record function. Bright & colorful LED spectrum analyzer screen. EQ looks great and does work, however it has a static noise when most of the faders are moved (cleaning doesn't seem to help) and one side of one of the tape monitor inputs is about 5 db lower in level. Works fine once the faders are left alone in position and if you don't need the second tape monitor. Use as-is, for parts or for repair. Measures 16.5" wide x 9" deep x 3" high and weighs 9 lbs unpacked. Cosmetic cond. 9.5 AS-IS $35. SOLD
	-	(click on above thumbnails to enlarge photos) TEAC TZ-601 SMOKED FRONT DUST COVER FOR TEAC Reel-to-Reel TAPE DECKS for sale For Open-reel TEAC tape decks. Designed to hook over locating pins on the top of the following machines: 4010 / 6010 / 7010 / 7030 Reel-to-Reel tape machines. May also fit others. Distance of the two factory holes is 13 3/4" center to center for mounting. Outside measures: 17 3/4"w X 13 3/8"h X 2 3/4"d & inside measures: 17 3/8"w X 13 1/8"h X 2 3/4"d. Used, but excellent condition with only very light wear. No breaks, cracks, chips or major scuffs / scratches. Cond. 8.5++ SOLD
RANDOM TEAC / TASCAM TECH / PARTS NOTES: Reel Tables / Spindles; TEAC 32-2B and 40-4 reel tables are interchangeable (rubber pad design may vary, but are also interchangeable)

Unless specifically noted, we do not typically sell 'component level' parts such as resistors, diodes, transistors, semiconductors, ic's / integrated circuit chips, ceramic capacitors, led's, bulbs, lamps, belts, etc. We do commonly sell circuit boards / cards which will likely come with those parts attached.
MAY* *When we say "some parts "MAY" also fit", that does NOT mean ALL the parts listed 'WILL' fit, and unless we show specific info that a particular part DOES 'cross-pollinate', do not infer that it does or will fit. Only careful research and comparisons, on YOUR part with service manuals, service bulletins, other comparable units, etc., MAY indicate a POSSIBLE substitution. If your situation is 'critical', do not base your decision on information found on this or any other page of this web site and do your own research.
